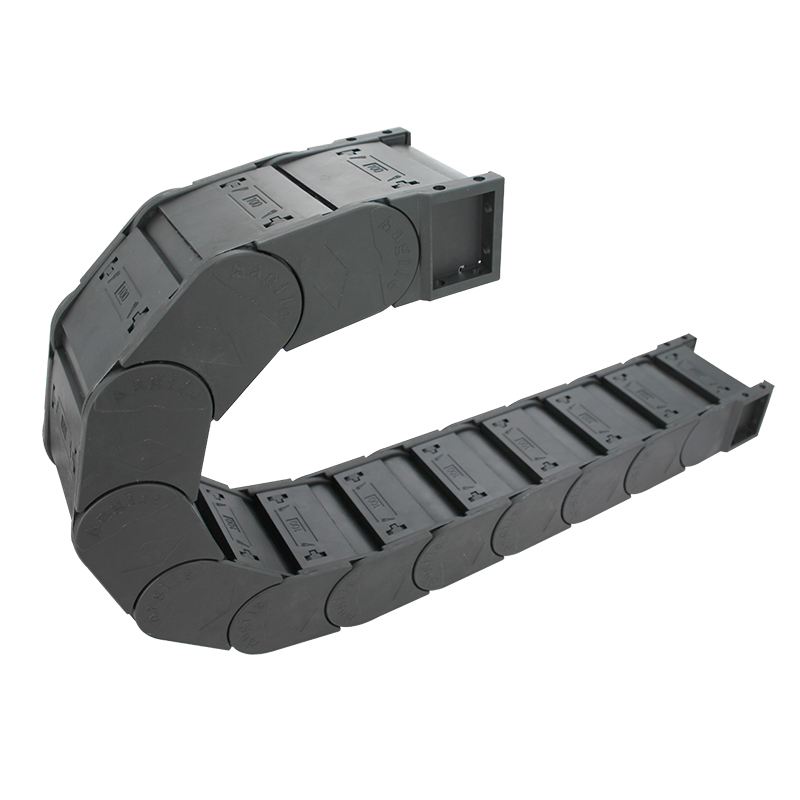

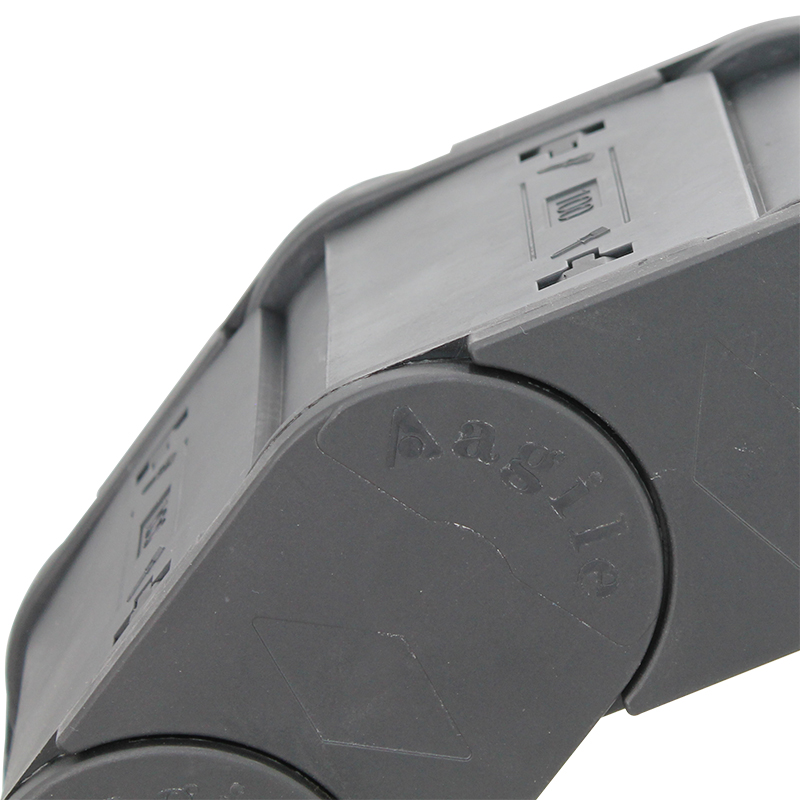

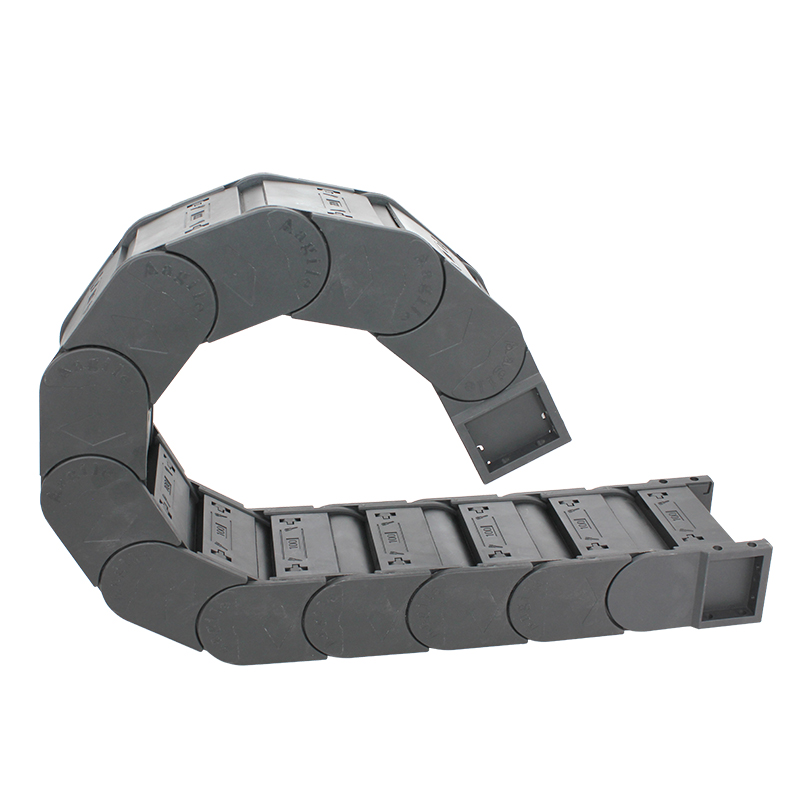

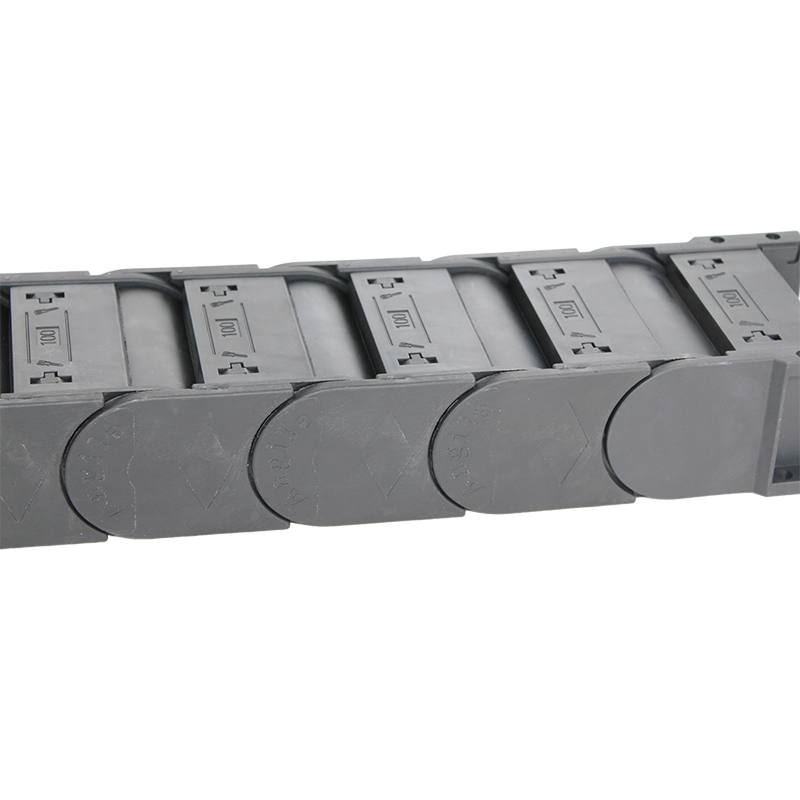

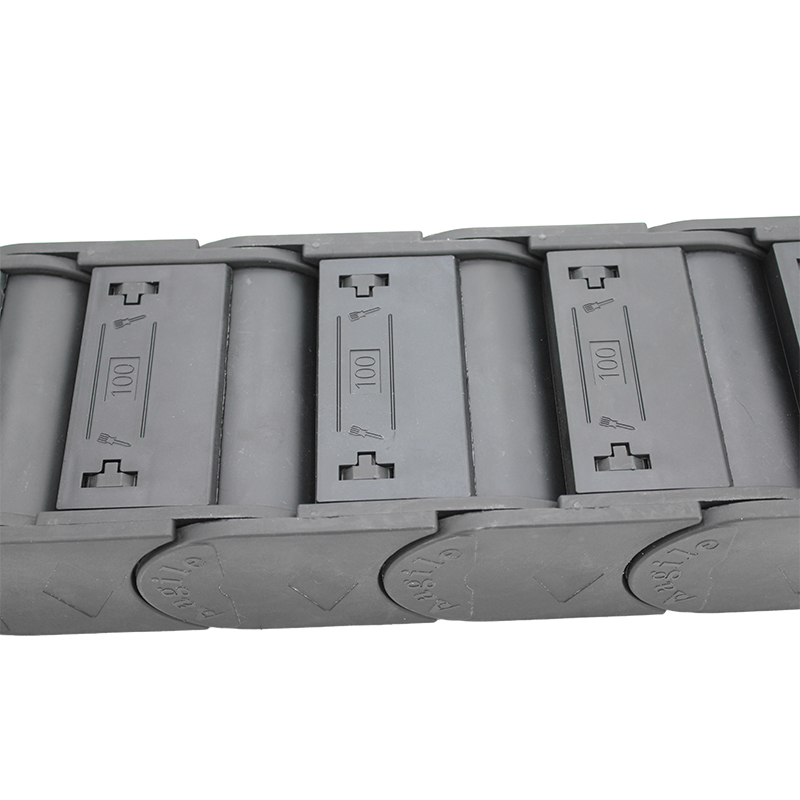

I-52*100 mm MT evaliweyo uhlobo oluqinisiweyo lokutsala ikhonkco le-nayiloni ye-CNC

52*100 mm MT closed type reinforced nylon drag chain for CNC

Inkcazelo emfutshane:

The MT type of plastic drag chain is mainly make from noylon with chemical material PA6 or PA66. It is suitable to be used as drag chain for CNC machine. This type is closed type of drag chain.

1. Izinto eziphathekayo: I-Nylon eQinisekileyo i-PA6, i-PA66

2. Ubungakanani: Ubungakanani bangaphakathi: Ubude * ububanzi, 52 * 100 mm

3. Ubuninzi bokubumba kwiisayizi ezahlukeneyo zokukhetha. Kwakhona iintlobo ezahlukeneyo, iimodeli. Sinokwenza umngundo omtsha kwiimfuno ezizodwa.

I-4, imathiriyeli ekrwada: Imathiriyeli entsha yenylon entsha. Asisebenzisi imathiriyeli yokurisayikilisha, enexabiso eliphantsi kodwa iveki ekusebenzeni komzimba.

5, Ukusebenza kunye nokugcinwa: Kulula. Sihlala silungisa kwaye siphucula izakhiwo zethu zokubumba ngokwengxelo yabathengi bethu emva kokusetyenziswa. Kwaye uhlala enika ingqwalasela enkulu ekusebenzeni.

QHAGAMSHELANA NGOKU PDF Khuphela

Iinkcukacha

Iithegi

Structure feateure

The MT type of plastic drag chain is mainly make from noylon with chemical material PA6 or PA66. It is suitable to be used as drag chain for CNC machine. This type is closed type of drag chain.

1. Izinto eziphathekayo: I-Nylon eQinisekileyo i-PA6, i-PA66

2. Ubungakanani: Ubungakanani bangaphakathi: Ubude * ububanzi, 52 * 100 mm

3. Ubuninzi bokubumba kwiisayizi ezahlukeneyo zokukhetha. Kwakhona iintlobo ezahlukeneyo, iimodeli. Sinokwenza umngundo omtsha kwiimfuno ezizodwa.

I-4, imathiriyeli ekrwada: Imathiriyeli entsha yenylon entsha. Asisebenzisi imathiriyeli yokurisayikilisha, enexabiso eliphantsi kodwa iveki ekusebenzeni komzimba.

Igama lemveliso	Ikhonkco lentambo yenayiloni eyomeleziweyo
Izinto eziphathekayo	PA6, PA66
Umbala	Mnyama
Umgangatho	UBUNCINCI OKHUTSHIWEYO ADE APHENDULWE
Ubushushu bokusebenza	-40-130 ℃
Isikhewu esicetyiswayo	10%
Iimbonakalo	iyanxitywa, ilastiki, ubungqina bomlilo, ukuzithambisa.
Vula icala	Omabini icala.

MT 52*100 umlinganiselo

Dimension 1
Dimension 3
Dimension 2
Dimension 4

Ulwakhiwo

drawing1
drawing2
drawing3

Series Dimension

UHLOBO	Imilinganiselo yangaphakathi Ubude*Ububanzi	Imilinganiselo yangaphandle Ubude*Ububanzi	Irediyasi	I-pitch	I-pitch / imitha	Ubunzima Kg/m
MT5-12	5*5	8*9	I-R10, i-R15	10	100	0.04
	7*7	10*13	I-R15, i-R28	17.5	57	0.07
	10*10	14*17	I-R28	20	50	0.13
	10*15	14*22	I-R25	20	50	0.16
	11*20	15*28	I-R28	20	50	0.17
	10*40	13*48	R50	13.4	75	0.18
MT15	15*20 ngaphakathi ukuvula	20*29	I-R38	20	50	0.303
	15*30 ngaphakathi ukuvula	20*39	I-R32			0.33
	15*50	20*69	R75			0.427
MT18	18*25 ngaphakathi ukuvula	23*36	R47	33.5	30	0.4
	18*37 ngaphakathi ukuvula	23*48	I-R45	33.8	30	0.435
	18*50 ngaphakathi ukuvula	23*62	I-R42	30.5	33	0.55
	18*25 ngaphandle kokuvula	23*37	R28 R38 R48	31	33	0.332
	18*37 ngaphandle kokuvula	23*48	R28 R38 R48	31	33	0.373
MT30	30*38	41*61	I-R55	44.6	23	1.123
	30*51	41*73				1.094
	30*77	41*100				1.435
MT35	33*52	53*78	I-R145	58	17	1.722
	33*75	53*91				1.545
	33*100	53*126				2.011
	33*175	53*201				2.562
MT45	45*50	63*80	I-R125	71.5	14	2.049
	45*75	63*105				2.729
	45*100	63*130				2.924
	45*125	63*155				3.074
	45*150	63*180				3.25
	45*175	63*205				3.346
	45*200	63*230				3.705
	45*250	63*280				3.913
MT52	52*60	75*84	I-R150	82	12	2.132
	52*75	75*99				2.558
	52*100	75*124				2.759
	52*100F	75*124				6.014
	52*120	75*144				2.882
	52*125F	75*149				3.344
	52*150	75*174				2.838
	52*150F	75*174				3.616
	52*175	75*199				3.132
	52*175 isakhelo esingqukuva R52	75*199				3.12
	52*175 isakhelo esingqukuva R45	75*199				2.992
	52*200	75*224				3.505
	52*200F	75*224				4.741
MT60	59*75	60*100	I-R150	91	11	3.932
	59*100	85*132				4.054
	59*125	85*157				4.239
	59*150	85*182				3.109
	59*175	85*207				4.647
	59*200	85*232				4.923
	59*250	85*282				5.326
	59*300	85*332				5.609
