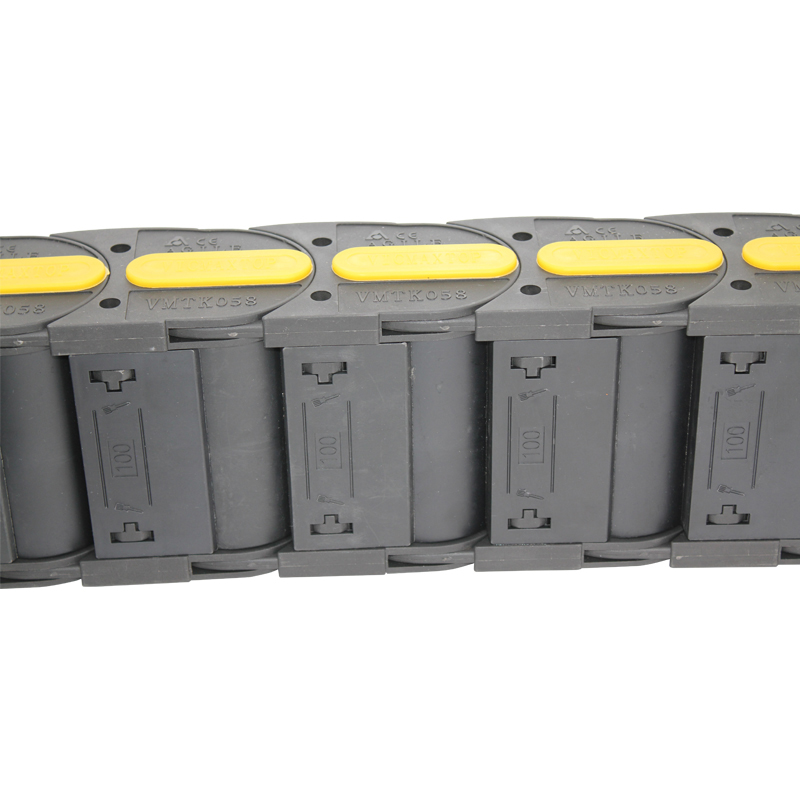

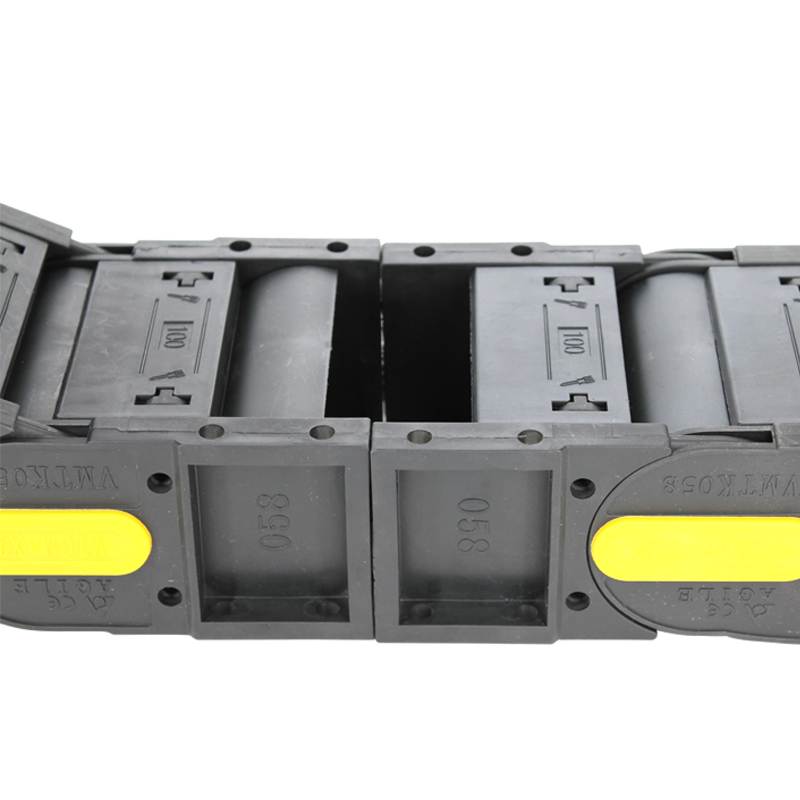

58*100 VMTK series enclosed moisture resistant reinforced nylon drag chain

Short Description:

1. Material: Reinforced Nylon PA6, PA66

2. Size: Inner size: Height*width, 58*100 mm

3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.

4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.

5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.


Product Detail

Product Tags

Product Video

structure feature

1. Material: Reinforced Nylon PA6, PA66
2. Size: Inner size: Height*width, 58*100 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.
4, The raw material: Original new nylon raw material. We don't use recycling materials, which is cheap but week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds' structures according to the feedback of our customers after usage. And always paying much attention to function.

Product Name Reinforced nylon cable chain
Material PA6, PA66
Color Black
Standard DIN GB ISO JIS BA ANSI
Working temperature -40-130 ℃
Recommended gap 10%
Features wearable, elastic, fire proof, self-lubricating.
Open side Both side.

VMTK 58*100 measurement

Structures

Series Dimension

TYPE

Inner dimensions

Height*Width

Outer dimensions

Height*Width

Radius

Pitch

Pitch/meter

Weight Kg

VMTK25

25*30

40*47

R55
R75
R82.5
R83
R100

46

22

0.6

24*38

40*57

45.7

22

0.8

24*50

40*69

45.6

22

1.2

25*57

40*74

46

22

1.2

25*75

40*92

46

22

1.3

25*100

40*117

46

22

1.7

VMTK38

38*50

60*78

R70
R79
R85
R89.5
R95

R120

R145

R170

R195

63

16

1.88

38*75

60*104

64.6

16

2

38*100

60*129

63.8

16

2.1

38*125

60*154

64.3

16

2.2

38*151

60*180

64.2

16

2.3

38*175

60*204

63

16

2.4

38*200

60*229

63

16

2.5

VMTK48

48*60

73*88

R90
R95
R103.5
R115
R140
R165
R190

R215

R240

R265

72

13

2.5

48*75 open /

48*75 enclosed

73*106

76.3

13

2.6

48*100 open/

48*100 enclosed

73*131

76.3

13

2.7

48*125 open /

48*125 enclosed

73*156

76.3

13

2.8

48*150 open /

150 enclosed

73*181

72

13

3

48*175 open/

semi-circle shaft

73*206

72

13

3.1

48*200

73*231

72

13

3.2

VMTK58

58*60

82*93

R98.5
R100
R105
R120
R150
R175
R200
R250
R300
R400
R500

84

12

3.2

58*75

82*108

82.2

12

3.3

58*100

82*133

84.5

12

3.4

58*125

82*158

84

12

3.5

57*151

82*184

83.3

12

3.6

58*175

82*208

84

12

3.7

58*200

82*233

84

12

3.8

58*250

82*283

84

12

3.9

VMTK68

68*100

97*145

R150
R175
R200
R208
R213

R250

R300

R400

R500

100

10

4.3

68*125

97*170

10

4.4

68*150

97*195

10

4.5

68*175

97*210

10

4.7

68*200

97*245

10

4.9

68*250

97*295

10

5.1

68*300

97*345

10

5.3

68*350

97*395

10

5.4

68*400

97*445

10

5.5

VMTK80

80*100

108*148

R150
R175

R200

R250

R300

R400

R500

125

8

4.3

80*125

108*173

8

4.3

80*150

108*198

8

4.4

80*175

108*223

8

4.5

80*200

108*248

8

4.6

80*250

108*298

8

4.8

80*300

108*348

8

5

80*350

108*398

8

5.1

80*400

108*448

8

5.

VMTK disassembling

disassembling 1
disassembling 2
disassembling 3
disassembling 4

Production flow

未标题-3

How to identify good products

identify 1
identify 2-1
identify 3
how to identify 4
8 guarantees
