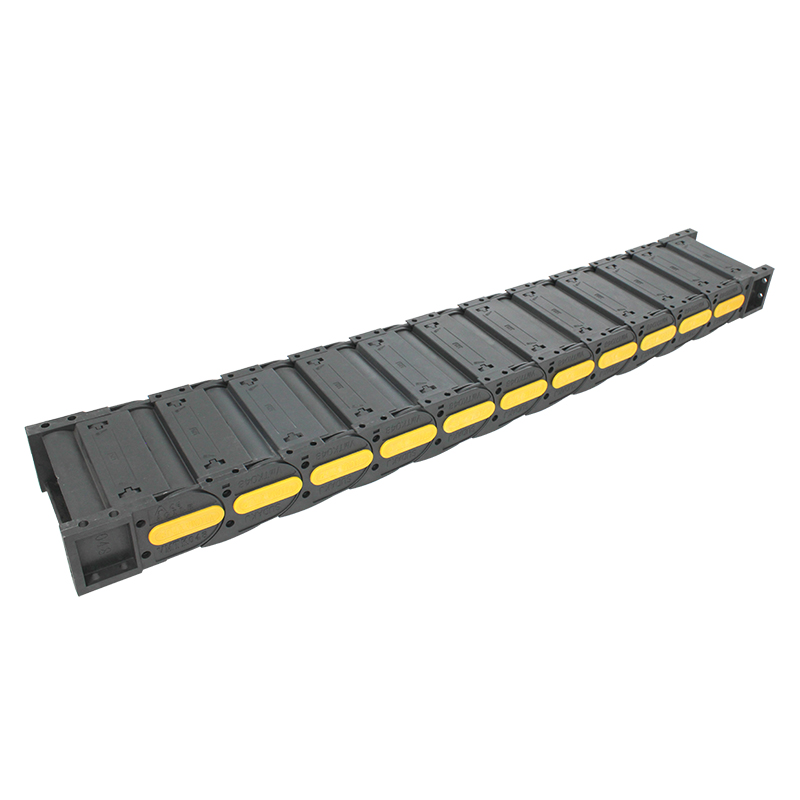

48*125 mm VMTK nylon enclosed type high strength flexible heavy duty energy chain
Product Video
1. Material: Reinforced Nylon PA6, PA66
2. Size: Inner size: Height*width, 48*125 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.
4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.
Product Name | Reinforced nylon cable chain |
Material | PA6, PA66 |
Color | Black |
Standard | DIN GB ISO JIS BA ANSI |
Working temperature | -40-130 ℃ |
Recommended gap | 10% |
Features | wearable, elastic, fire proof, self-lubricating. |
Open side | Both side. |
VMTK 48*125 measurement
Structures
Series Dimension
TYPE |
Inner dimensions Height*Width |
Outer dimensions Height*Width |
Radius |
Pitch |
Pitch/meter |
Weight Kg |
VMTK25 |
25*30 |
40*47 |
R55 R85 R100 R125 |
46 |
22 |
0.6 |
24*38 |
40*57 |
0.8 |
||||
24*50 |
40*69 |
1.2 |
||||
25*57 |
40*74 |
1.2 |
||||
25*75 |
40*92 |
1.3 |
||||
25*100 |
40*117 |
1.7 |
||||
VMTK38 |
38*50 |
60*78 |
R75 |
64 |
16 |
1.88 |
38*75 |
60*104 |
2 |
||||
38*100 |
60*129 |
2.1 |
||||
38*125 |
60*154 |
2.2 |
||||
38*151 |
60*180 |
2.3 |
||||
38*175 |
60*204 |
2.4 |
||||
38*200 |
60*229 |
2.5 |
||||
VMTK48 |
48*60 |
73*88 |
R96 |
76 |
13 |
2.5 |
48*75 open / 48*75 enclosed |
73*106 |
2.6 |
||||
48*100 open/ 48*100 enclosed |
73*131 |
2.7 |
||||
48*125 open / 48*125 enclosed |
73*156 |
2.8 |
||||
48*150 open / 150 enclosed |
73*181 |
3 |
||||
48*175 open/ semi-circle shaft |
73*206 |
3.1 |
||||
48*200 |
73*231 |
3.2 |
||||
VMTK58 |
58*60 |
82*93 |
R100 R120 R150 R175 R250 R200 R300 R400 R500
|
83 |
12 |
3.2 |
58*75 |
82*108 |
3.3 |
||||
58*100 |
82*133 |
3.4 |
||||
58*125 |
82*158 |
3.5 |
||||
57*151 |
82*184 |
3.6 |
||||
58*175 |
82*208 |
3.7 |
||||
58*200 |
82*233 |
3.8 |
||||
58*250 |
82*283 |
3.9 |
||||
VMTK68 |
68*100 |
97*145 |
R210 |
98 |
10 |
4.3 |
68*125 |
97*170 |
4.4 |
||||
68*150 |
97*195 |
4.5 |
||||
68*175 |
97*210 |
4.7 |
||||
68*200 |
97*245 |
4.9 |
||||
68*250 |
97*295 |
5.1 |
||||
68*300 |
97*345 |
5.3 |
||||
VMTK80 |
80*100 |
108*148 |
R150 |
124 |
8 |
4.3 |
80*125 |
108*173 |
4.3 |
||||
80*150 |
108*198 |
4.4 |
||||
80*175 |
108*223 |
4.5 |
||||
80*200 |
108*248 |
4.6 |
||||
80*250 |
108*298 |
4.8 |
||||
80*300 |
108*348 |
5 |
||||
80*350 |
108*398 |
5.1 |
||||
80*400 |
108*448 |
5. |
VMTK disassembling
Production flow
How to identify good products
