35*57 mm MTS closed sealed type of nylon cable chain

Short Description:

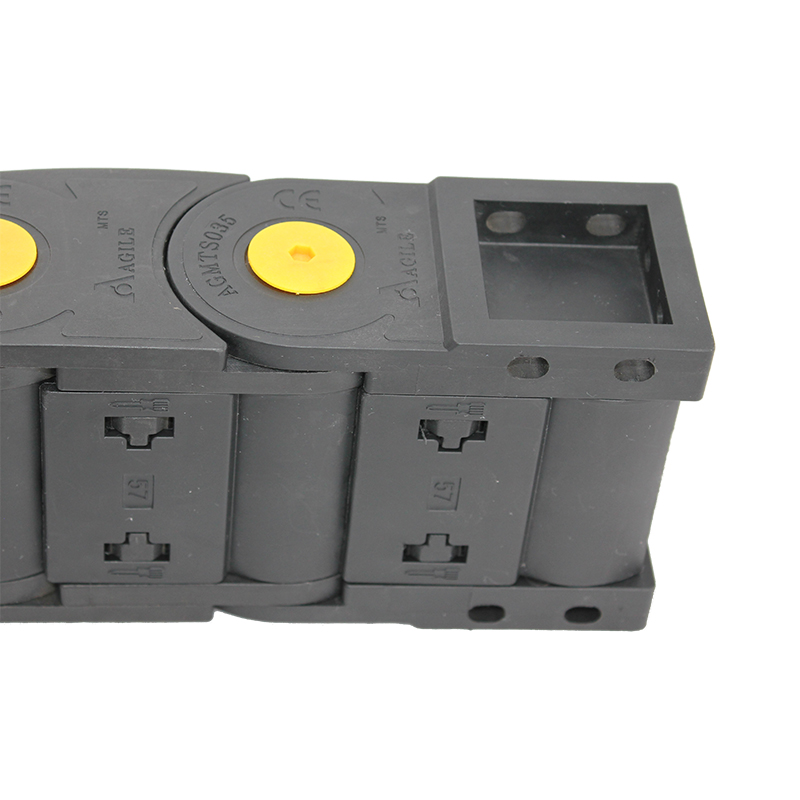

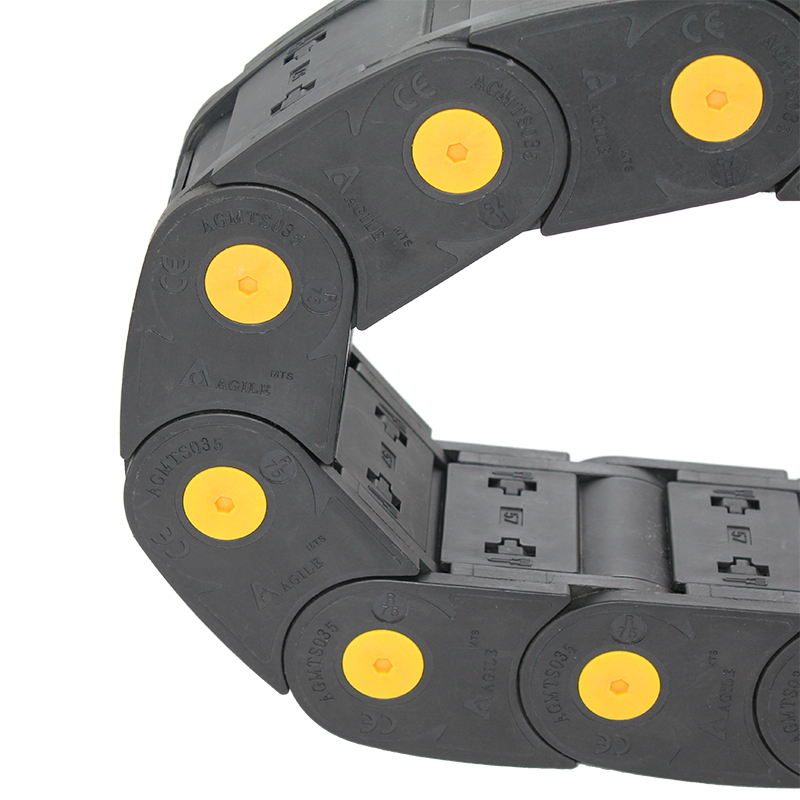

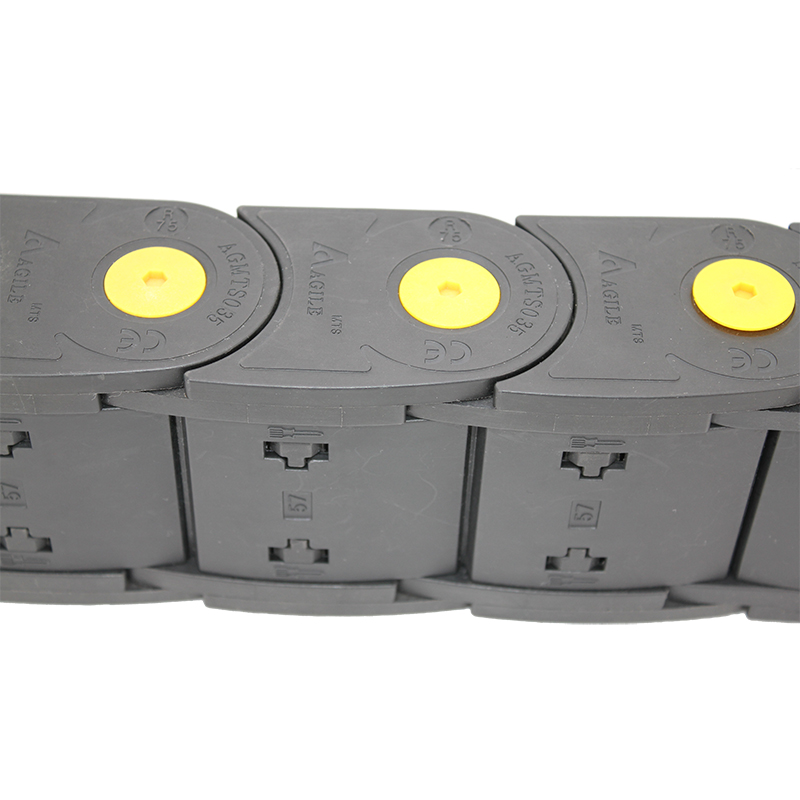

This is MTS type of cable chain which got yellow pin on the side panel, it is closed type cable chain. The inner size is 35*57 mm, this size also have bridge type.

1. Material: Reinforced Nylon PA6, PA66

2. Size: Inner size: Height*width, 35*57 mm

3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.

4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.

5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.






PDF Download
Details
Tags

Product Video





1. Material: Reinforced Nylon PA6, PA66

2. Size: Inner size: Height*width, 35*57 mm

3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.

4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.

5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.

Product Name Reinforced nylon cable chain
Material PA6, PA66
Color Black
Standard DIN GB ISO JIS BA ANSI
Working temperature -40-130 ℃
Recommended gap 10%
Features wearable, elastic, fire proof, self-lubricating.
Open side Both side.

MTS 35*57 measurement

Dimension 1
Dimension 3
Dimension 2
Dimension 4

Structures


Series Dimension

TYPE

Inner dimensions

Height*Width

Outer dimensions

Height*Width

Radius

Pitch

Pitch/meter

Weight per meter Kg

MTS35

35*50

55*75

R85
R100
R125
R150
R200

64.2

16

2.26

35*57F

56*83

2.52

35*75

55*101

 2.41

35*75F

56*101

2.75

35*100

55*125

 2.55

35*100F

56*126

3.07

35*125

55*150

 2.66

35*125F

56*151

3.25

35*150

55*175

 2.79

35*175

55*200

 2.96

35*200

55*225

 3.06

MTS45

45*60

68*90

R100
R125
R150
R175
R200

75.5

13

2.37

45*75

68*105

2.83

45*75F

68*105

3.09

45*100

68*130

3.04

45*100F

68*130

3.60

45*120

69*155

3.17

45*125F

65*155

3.83

45*150

68*180

2.92

45*175

69*205

3.44

45*175 round R52

69*205

3.41

45*175 round R45

69*205

3.29

45*200

68*230

 3.66

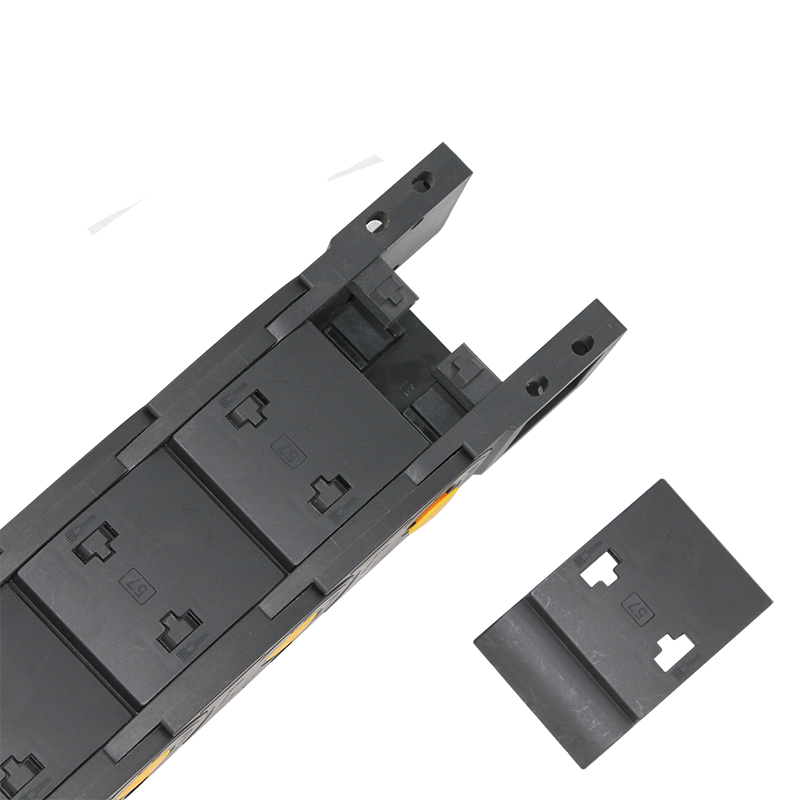

MTS disassembling

disassembling 1
disassembling 2
disassembling 3
disassembling 4

Production flow

未标题-3

How to identify good products

identify 1
identify 2
identify 3
how to identify 4
8 guarantees
