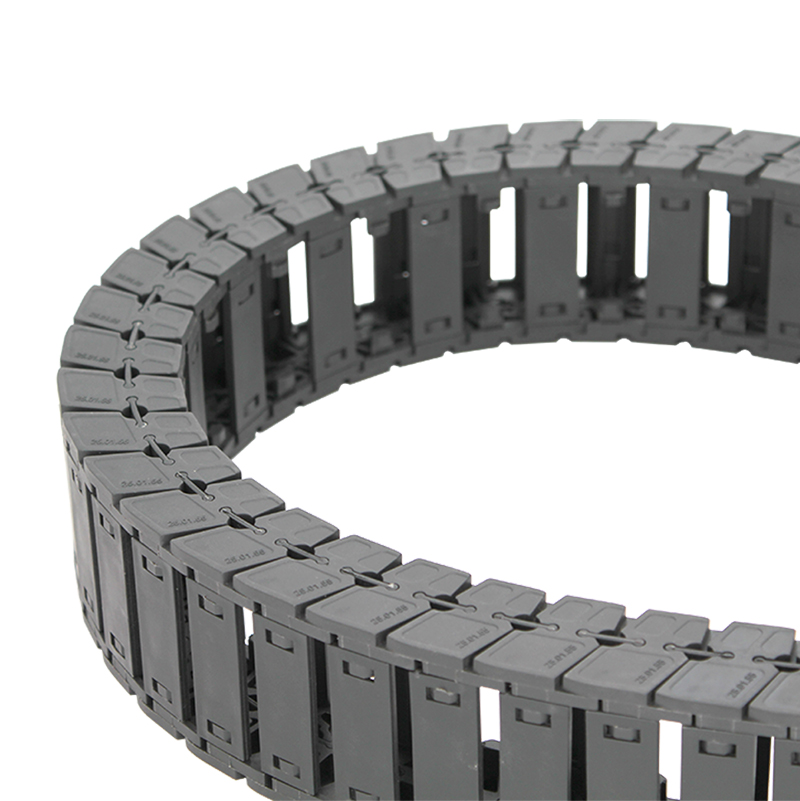

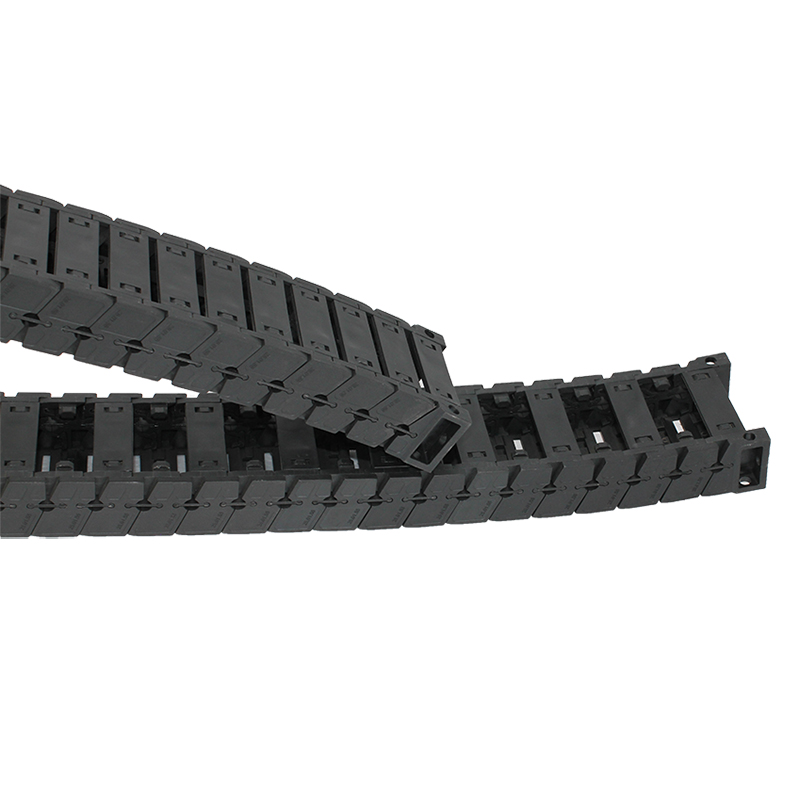

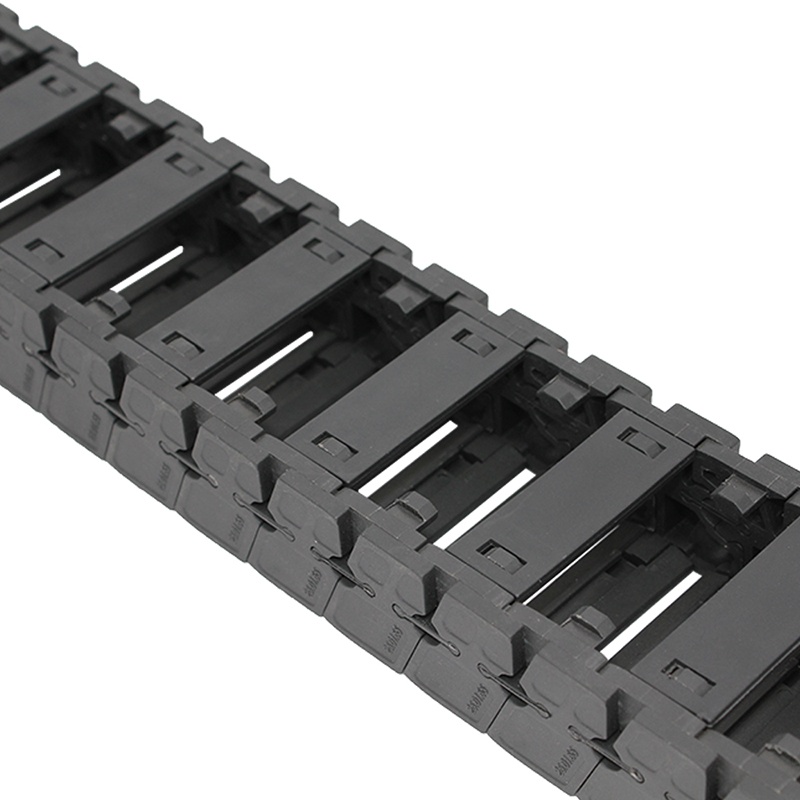

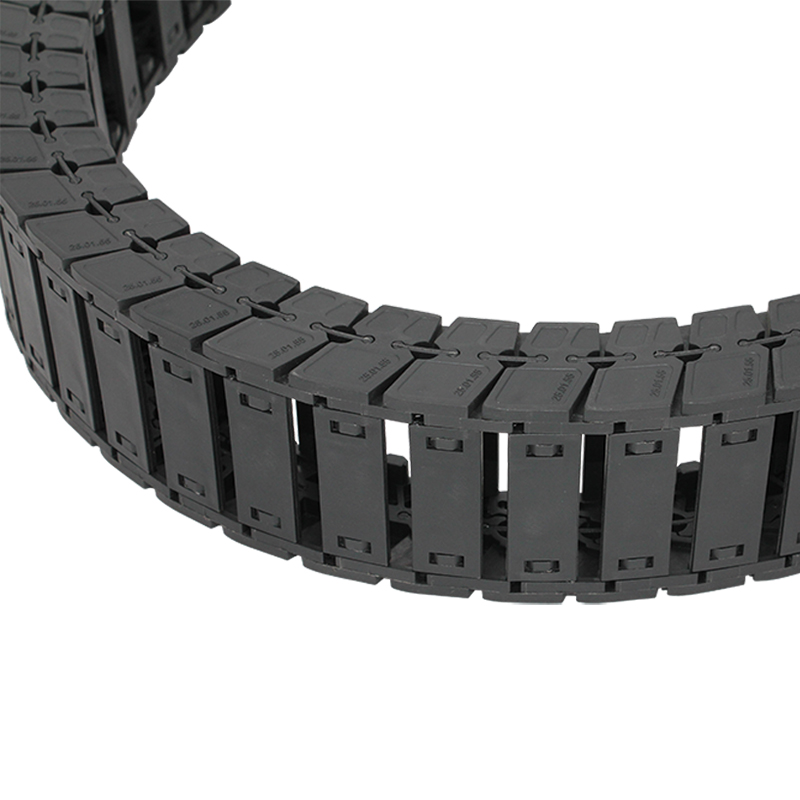

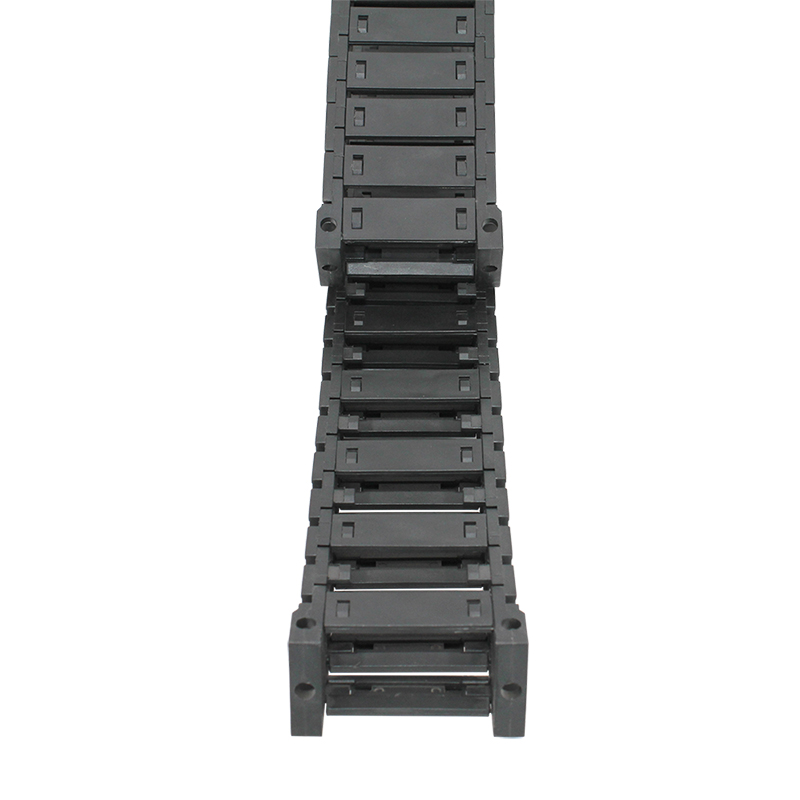

25*50 mm VSK type nylon bridge type low noise high speed cable chain

Short Description:

1. Material: Reinforced Nylon PA6, PA66

2. Size: Inner size: Height*width, 25*50 mm

3. The VSK type of cable chain is also called sabin cable chain. Which means low noise. This type of drag chain got the feature of low noise and high speed drag chain property. And is widely used in the printing machine or other machines need a quite environment. We have plenty of moulds for various energy chain sizes to choose. Also difference types, models. We can make new mould for special requirements.

4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.

5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.






PDF Download
Details
Tags

Product video





1. Material: Reinforced Nylon PA6, PA66

2. Size: Inner size: Height*width, 25*50 mm

3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.

4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.

5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.

Product Name Reinforced nylon sabin cable chain
Material PA6, PA66
Color Black
Standard DIN GB ISO JIS BA ANSI
Working temperature -40-130 ℃
Recommended gap 10%
Features wearable, elastic, fire proof, self-lubricating.
Open side Both side.

VSK 25*50 measurement

Dimension 1
Dimension 3
Dimension 2
Dimension 4

Structures



Series Dimension

TYPE

Inner dimensions

Height*Width

Outer dimensions

Height*Width

Radius

Pitch

Pitch/meter

Weight Kg

vsk18

18*32

23*43

R43

18.5

54

0.4kg

18*36

23*47

0.5

vsk22

22*27

30*43

R55

22

46

0.5

22*40

30*55

0.55

22*50

30*65

0.588

22*60

30*75

0.632

22*70

30*85

0.676

vsk25

25*26

35*42

R55
R75

22

46

0.6

25*35

35*51

0.7kg/R55

25*40

35*56

0.75kg/R55

25*50

35*66

0.8kg/R55

25*60

35*76

0.9kg/R55

vsk30

28*27

36*44

R50

22

46

0.674

28*40

36*57

0.722

28*44

36*66

0.762

28*55

36*77

0.806

28*65

36*87

0.85

vsk40

39*43

50*71

R75
R100
R125
R150

33

30

1.15

39*62

50*90

0.993

39*68

50*96

1.08

39*94

50*122

1.2

VSK disassembling

disassembling 1
disassembling 2
disassembling 3
disassembling 4
disassembling 5
disassembling 6
disassembling 7
disassembling 8

Production flow

未标题-3

How to identify good products

identify 1
identify 2
identify 3
how to identify 4
8 guarantees
