58 * 120 limilimithara VMTK borokho bo matla bo phahameng ba mofuta oa cnc nylon cable carrier

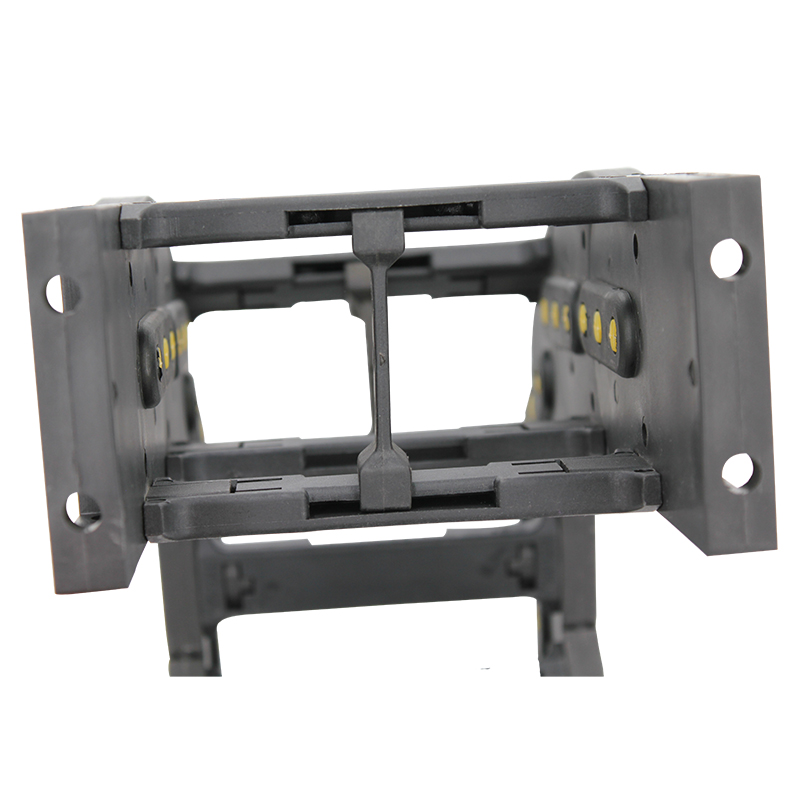

58*120 mm VMTK high strength bridge type cnc nylon cable carrier

Tlhaloso e Khutšoanyane:

This is VMTK series with inner height of 58 mm and inner width 120 mm. This is high strength type of cable carrier, so performing good at load capability. The bridge type can make it easier for cable laying. It is cable carrier mainly used in cnc machine, textile machine, or construction machinery, etc.

1. Boitsebiso: Nylon e Matlafalitsoeng PA6, PA66
2. Size: Inner size: Height*width, 58*120 mm
3. Mefuta e mengata ea liforomo bakeng sa boholo bo fapaneng ho khetha. Hape, mefuta e fapaneng, mehlala. Re ka etsa hlobo e ncha bakeng sa litlhoko tse khethehileng.
4, Thepa e tala: Lintho tse tala tsa pele tsa nylon. Ha re sebelise lisebelisoa tsa ho tsosolosa, tse theko e tlaase empa beke le ts'ebetso ea 'mele.
5, Ts'ebetso le tlhokomelo: Ho bonolo. Re lula re fetola le ho ntlafatsa meaho ea hlobo ea rona ho latela maikutlo a bareki ba rona kamora ts'ebeliso. 'Me kamehla ho ela hloko haholo ho sebetsa.

TS'ELISO HONA PDF Download

Lintlha

Li-tag

Video ea Sehlahisoa

Lebitso la Sehlahiswa	Ketane ea lithapo tsa nylon e matlafalitsoeng
Lintho tse bonahalang	PA6, PA66
Mmala	Ntsho
Standard	BONYENYANE BA ntšitsoeng HO FIHLELA BA ARAJOA
Mocheso o sebetsang	-40-130 ℃
Lekhalo le khothaletsoang	10%
Likaroloana	ho aparoa, rekere, bopaki ba mollo, ho itlotsa.
Lehlakore le bulehileng	Mahlakore ka bobedi.

VMTK 58*120 measurement

Dimension 1
Dimension 3
Dimension 2
Dimension 4

Mehaho

Series Dimension

MOFUTA	Litekanyo tse ka hare Bophahamo*Bophara	Litekanyo tsa ka ntle Bophahamo*Bophara	Radius	Pitch	Pitch/mithara	Boima Kg
VMTK25	25*30	40*47	R55 R85 R100 R125	46	22	0.6
	24*38	40*57				0.8
	24*50	40*69				1.2
	25*57	40*74				1.2
	25*75	40*92				1.3
	25*100	40*117				1.7
VMTK38	38*50	60*78	R75 R90 R120 R140 R170 R210	64	16	1.88
	38*75	60*104				2
	38*100	60*129				2.1
	38*125	60*154				2.2
	38*151	60*180				2.3
	38*175	60*204				2.4
	38*200	60*229				2.5
VMTK48	48*60	73*88	R96 R115 R140 R165 R190 R215 R240 R265	76	13	2.5
	4875 bula / 4875 e kentsoeng	73*106				2.6
	48100 bula/ 48100 e kentsoeng	73*131				2.7
	48125 bula / 48125 e kentsoeng	73*156				2.8
	48*150 bula / 150 e kentsoeng	73*181				3
	48*175 bula/ semi-circle shaft	73*206				3.1
	48*200	73*231				3.2
VMTK58	58*60	82*93	R100 R120 R150 R175 R250 R200 R300 R400 R500	83	12	3.2
	58*75	82*108				3.3
	58*100	82*133				3.4
	58*125	82*158				3.5
	57*151	82*184				3.6
	58*175	82*208				3.7
	58*200	82*233				3.8
	58*250	82*283				3.9
VMTK68	68*100	97*145	R210	98	10	4.3
	68*125	97*170				4.4
	68*150	97*195				4.5
	68*175	97*210				4.7
	68*200	97*245				4.9
	68*250	97*295				5.1
	68*300	97*345				5.3
VMTK80	80*100	108*148	R150 R200 R250 R300 R400 R500 R600	124	8	4.3
	80*125	108*173				4.3
	80*150	108*198				4.4
	80*175	108*223				4.5
	80*200	108*248				4.6
	80*250	108*298				4.8
	80*300	108*348				5
	80*350	108*398				5.1
	80*400	108*448				5.
