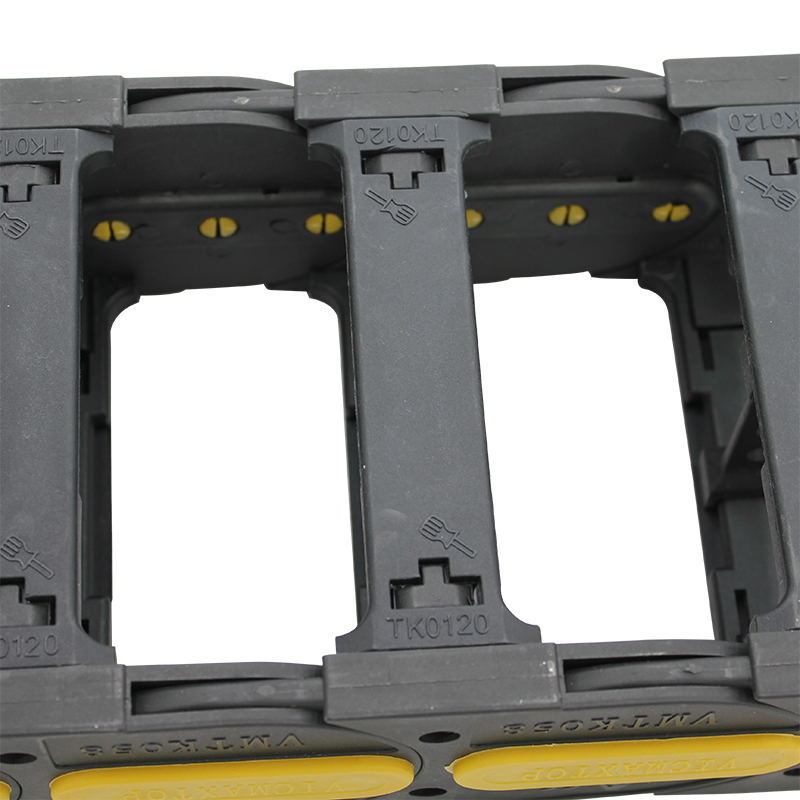

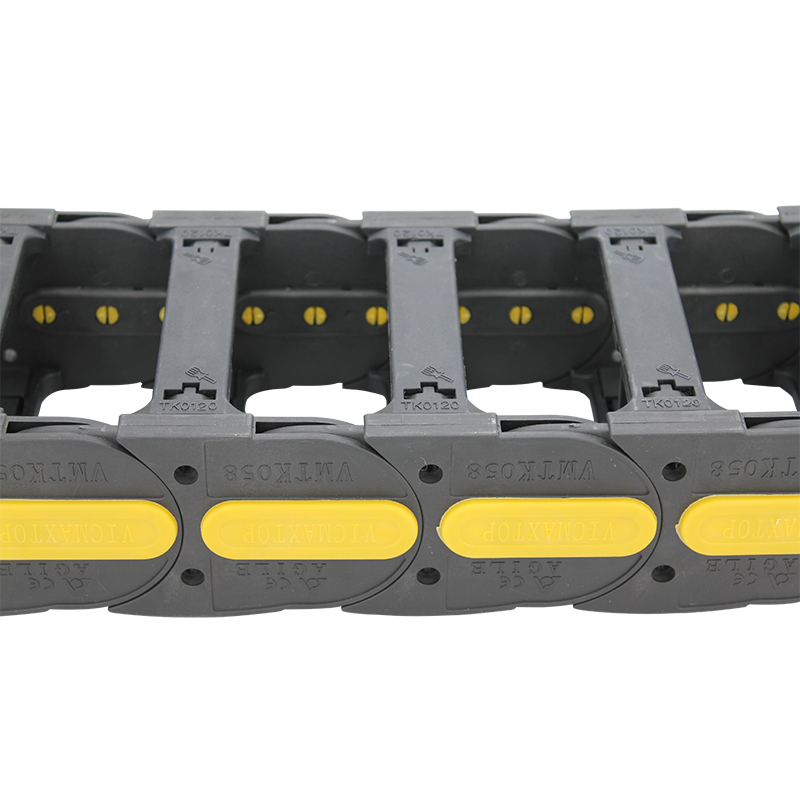

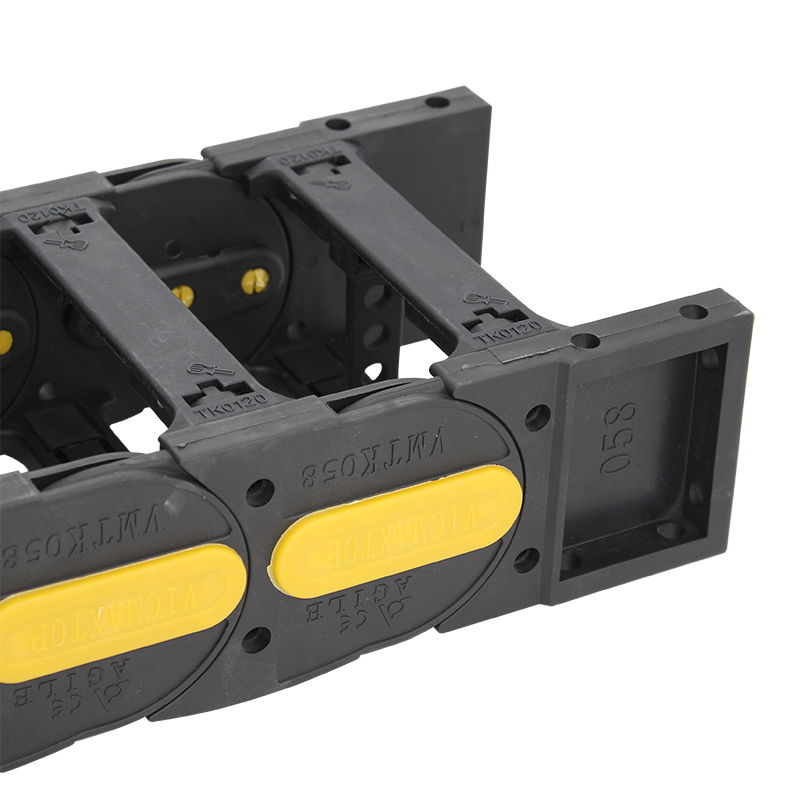

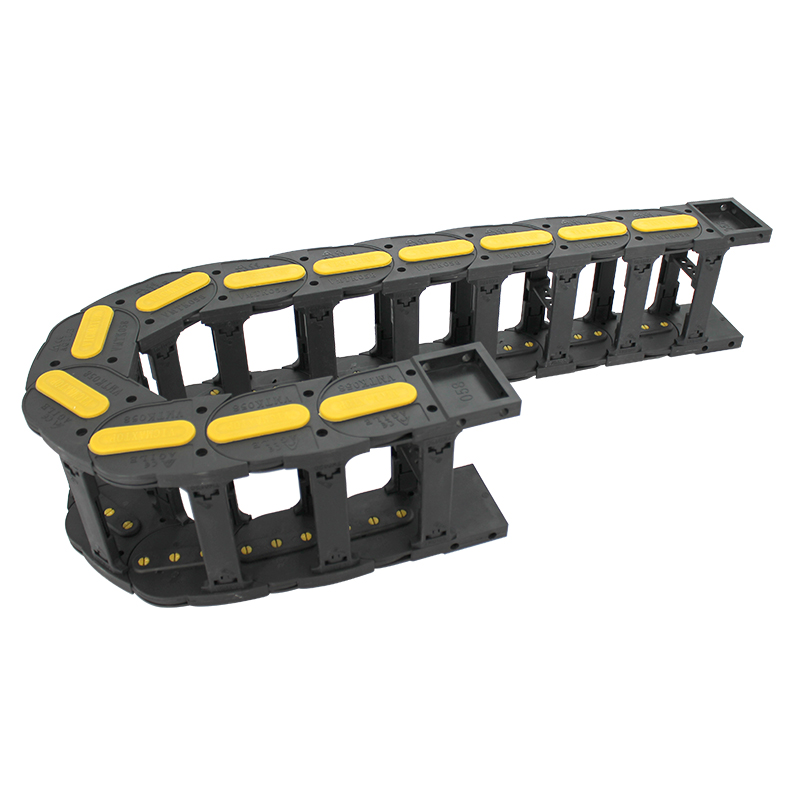

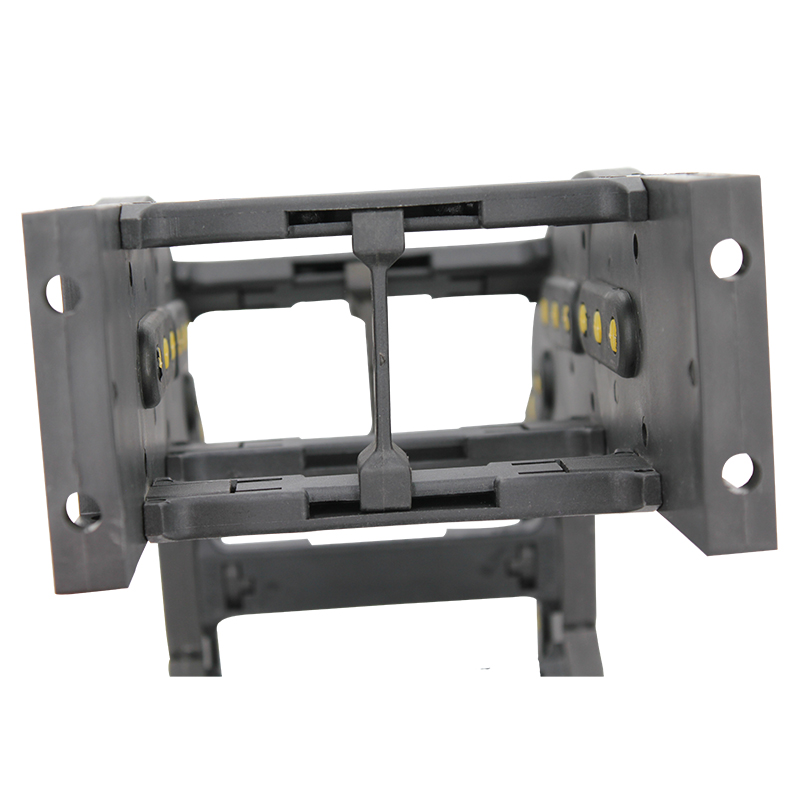

58*120 mm VMTK kiʻekiʻe ikaika alahaka 'ano cnc nylon kaula lawe
Video Huahana
1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66
2. Size: Inner size: Height*width, 58*120 mm
3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.
4, ʻO ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.
5, Hana a mālama: maʻalahi. Hoʻomau mākou i ka hoʻololi a me ka hoʻomaikaʻi ʻana i kā mākou mau mold e like me ka manaʻo o kā mākou mea kūʻai ma hope o ka hoʻohana ʻana. A e nānā mau i ka hana.
| inoa mea kūʻai | kaulahao uwea nylon i hooikaikaia |
| Mea waiwai | PA6, PA66 |
| kalakala | ʻeleʻele |
| Kūlana | ISO MINIMUM A HIKI ANSI |
| Hana wela | -40-130 ℃ |
| Manaʻo ʻia ka hakahaka | 10% |
| Nā hiʻohiʻona | hiki ke hoʻohana ʻia, elastic, pale ahi, lubricating ponoʻī. |
| ʻaoʻao hāmama | ʻaoʻao ʻelua. |
VMTK 58*120 measurement
Nā hale hana
Anana moʻo
|
ANO |
Ana o loko Kiekie*Ala |
Nā ana o waho Kiekie*Ala |
Radius |
Pitch |
Pitch/mika |
Kaumaha Kg |
|
VMTK25 |
25*30 |
40*47 |
R55 R85 R100 R125 |
46 |
22 |
0.6 |
|
24*38 |
40*57 |
0.8 |
||||
|
24*50 |
40*69 |
1.2 |
||||
|
25*57 |
40*74 |
1.2 |
||||
|
25*75 |
40*92 |
1.3 |
||||
|
25*100 |
40*117 |
1.7 |
||||
|
VMTK38 |
38*50 |
60*78 |
R75 |
64 |
16 |
1.88 |
|
38*75 |
60*104 |
2 |
||||
|
38*100 |
60*129 |
2.1 |
||||
|
38*125 |
60*154 |
2.2 |
||||
|
38*151 |
60*180 |
2.3 |
||||
|
38*175 |
60*204 |
2.4 |
||||
|
38*200 |
60*229 |
2.5 |
||||
|
VMTK48 |
48*60 |
73*88 |
R96 |
76 |
13 |
2.5 |
|
48*75 wehe / 48*75 i hoopiliia |
73*106 |
2.6 |
||||
|
48*100 wehe/ 48*100 i paa |
73*131 |
2.7 |
||||
|
48*125 wehe / 48*125 i paa |
73*156 |
2.8 |
||||
|
48*150 wehe / 150 i hoʻopaʻa ʻia |
73*181 |
3 |
||||
|
48*175 wehe/ māwae hapalua pōʻai |
73*206 |
3.1 |
||||
|
48*200 |
73*231 |
3.2 |
||||
|
VMTK58 |
58*60 |
82*93 |
R100 R120 R150 R175 R250 R200 R300 R400 R500
|
83 |
12 |
3.2 |
|
58*75 |
82*108 |
3.3 |
||||
|
58*100 |
82*133 |
3.4 |
||||
|
58*125 |
82*158 |
3.5 |
||||
|
57*151 |
82*184 |
3.6 |
||||
|
58*175 |
82*208 |
3.7 |
||||
|
58*200 |
82*233 |
3.8 |
||||
|
58*250 |
82*283 |
3.9 |
||||
|
VMTK68 |
68*100 |
97*145 |
R210 |
98 |
10 |
4.3 |
|
68*125 |
97*170 |
4.4 |
||||
|
68*150 |
97*195 |
4.5 |
||||
|
68*175 |
97*210 |
4.7 |
||||
|
68*200 |
97*245 |
4.9 |
||||
|
68*250 |
97*295 |
5.1 |
||||
|
68*300 |
97*345 |
5.3 |
||||
|
VMTK80 |
80*100 |
108*148 |
R150 |
124 |
8 |
4.3 |
|
80*125 |
108*173 |
4.3 |
||||
|
80*150 |
108*198 |
4.4 |
||||
|
80*175 |
108*223 |
4.5 |
||||
|
80*200 |
108*248 |
4.6 |
||||
|
80*250 |
108*298 |
4.8 |
||||
|
80*300 |
108*348 |
5 |
||||
|
80*350 |
108*398 |
5.1 |
||||
|
80*400 |
108*448 |
5. |
ʻO ka wehe ʻana o VMTK
Ke kahe hana
Pehea e ʻike ai i nā huahana maikaʻi
