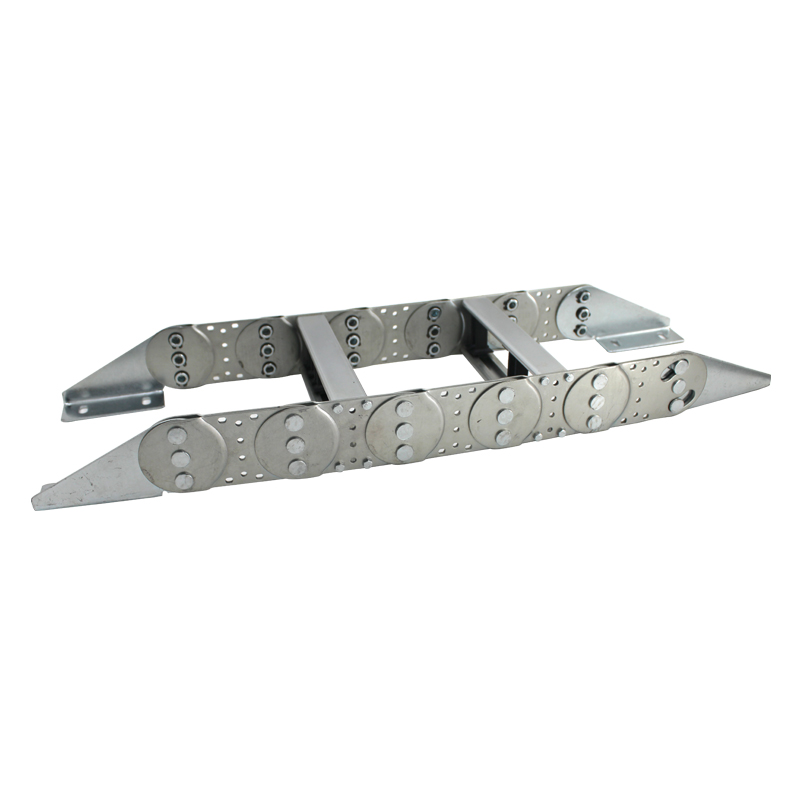

III type structure 51mm inner height TL95 high load anti acid steel cable carrier

Short Description:

1. Material: Stainless steel, carbon steel
2. Size: Inner size: Height*width, 51 mm * customized width size.
3. The width is decided by the frame length, which is customized to any size. We can make new mould for special requirements for special inner height.
4, The raw material: Original pure steel with material report from the market.
5, Advantage: Comparing to the nylon type of cable chain, the steel type is high in load for the cables, and structure more strong than nylon. It is widely used in the foundry, heavy engineering truck etc.






PDF Download
Details
Tags

新主图1
尼龙钢制对比

1. Material: Stainless steel, carbon steel
2. Size: Inner size: Height*width, 51 mm * customized width size.
3. The width is decided by the frame length, which is customized to any size. We can make new mould for special requirements for special inner height.
4, The raw material: Original pure steel with material report from the market.
5, Advantage: Comparing to the nylon type of cable chain, the steel type is high in load for the cables, and structure more strong than nylon. It is widely used in the foundry, heavy engineering truck etc.

Product Name Steel cable chain
Material Carbon steel, stainless steel, etc.
Color Silver
Standard DIN GB ISO JIS BA ANSI
Working temperature -40-130 ℃
Recommended gap 10%
Features wearable, elastic, fire proof, self-lubricating.
Open side From the side.

Dimension drawing

brief drawing
moving bracket
fixed end bracket

Structures for choice

type II
type III
type IV

Series Dimension

TYPE Inner dimensions Height Outer Height Radius Pitch Pitch/meter
TL065 26 44 75/100/125/150/175/200 mm 65 15
TL075 32 50 75/100/125/150/175/200/225 mm 75 13
TL080 36 56 100/115/150/200/250/300 mm 80 13
TL095 51 70 95 10
TL0100 52 70 100 10
TL125 68 100 150/175/200/250/300/350/400/500/600 mm 125 8
TL180 112 144 250/300/350/400/500/600/700 mm 180 6
