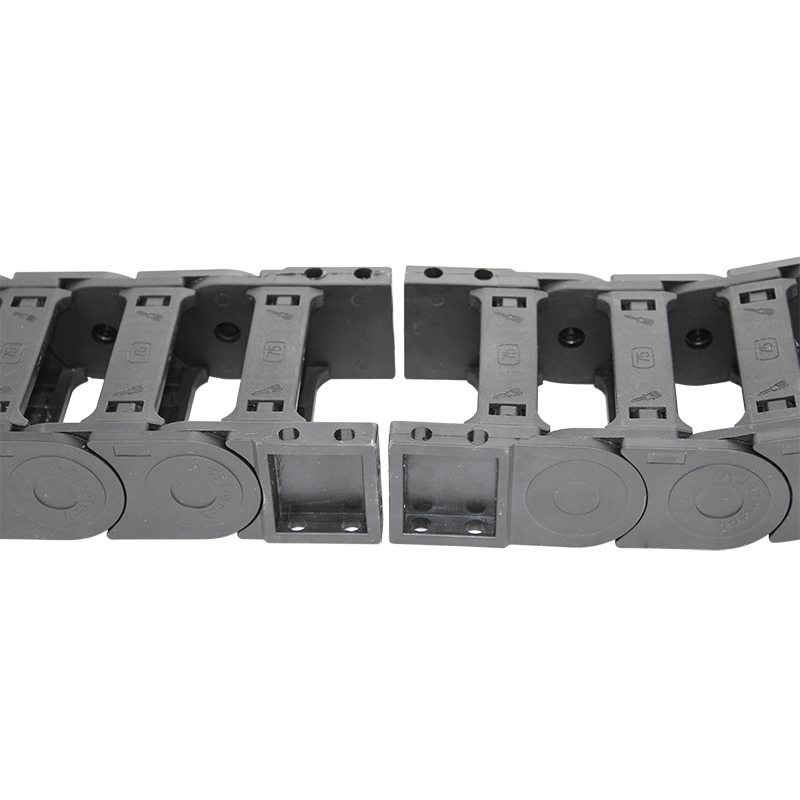

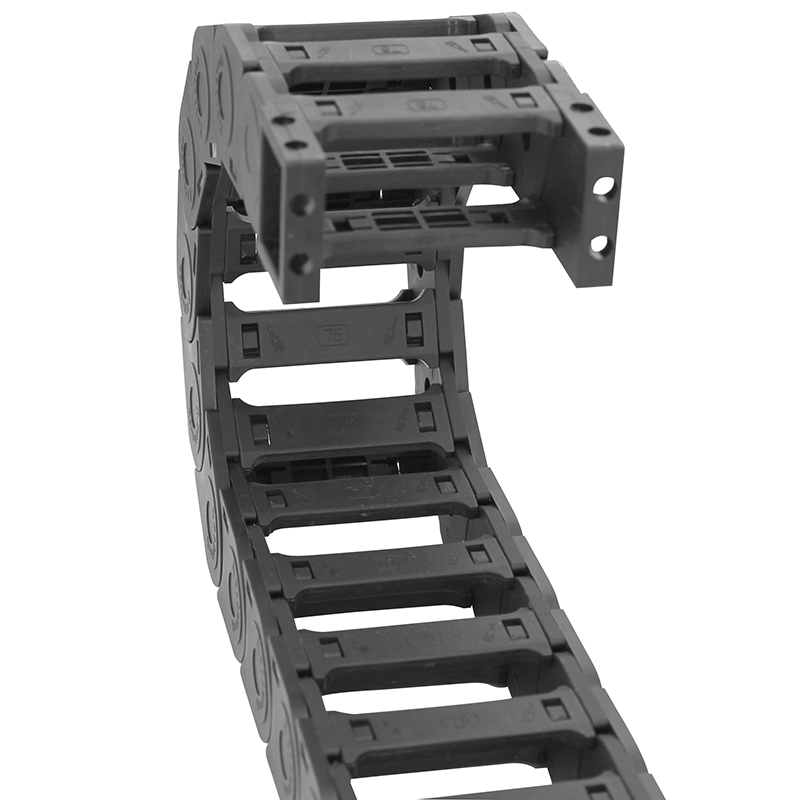

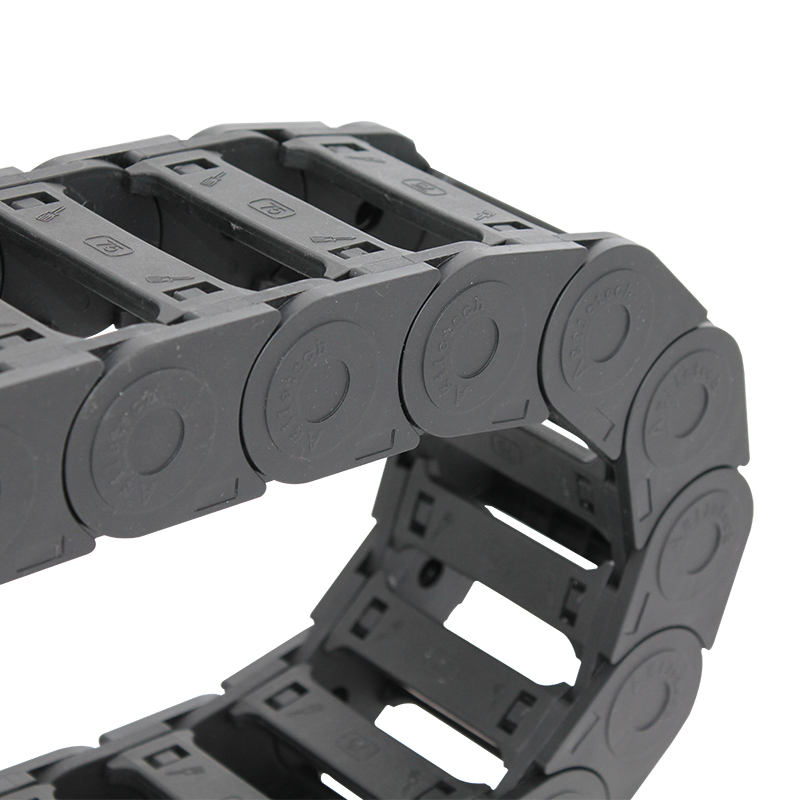

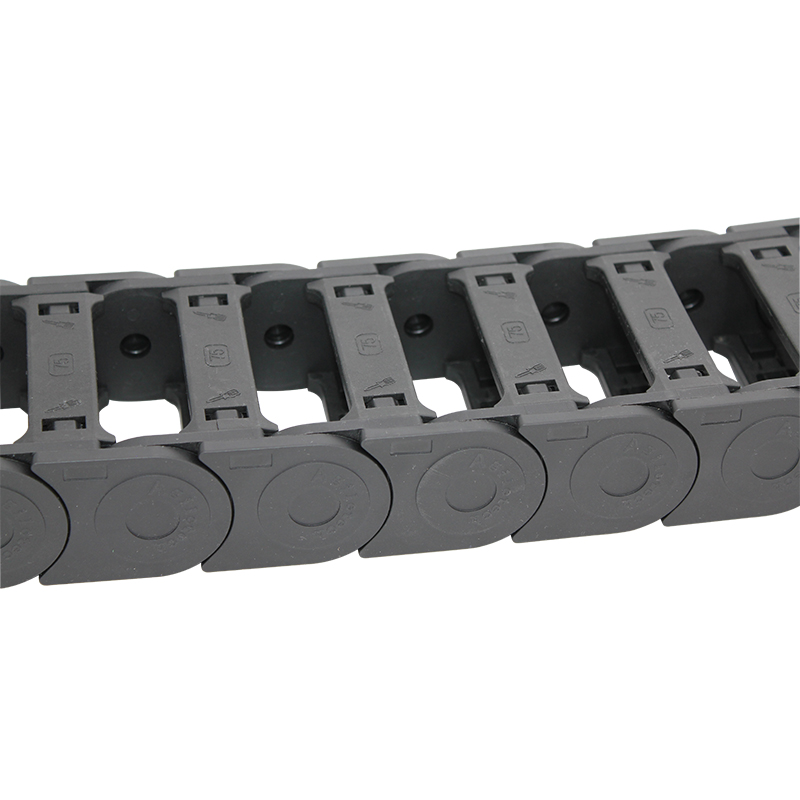

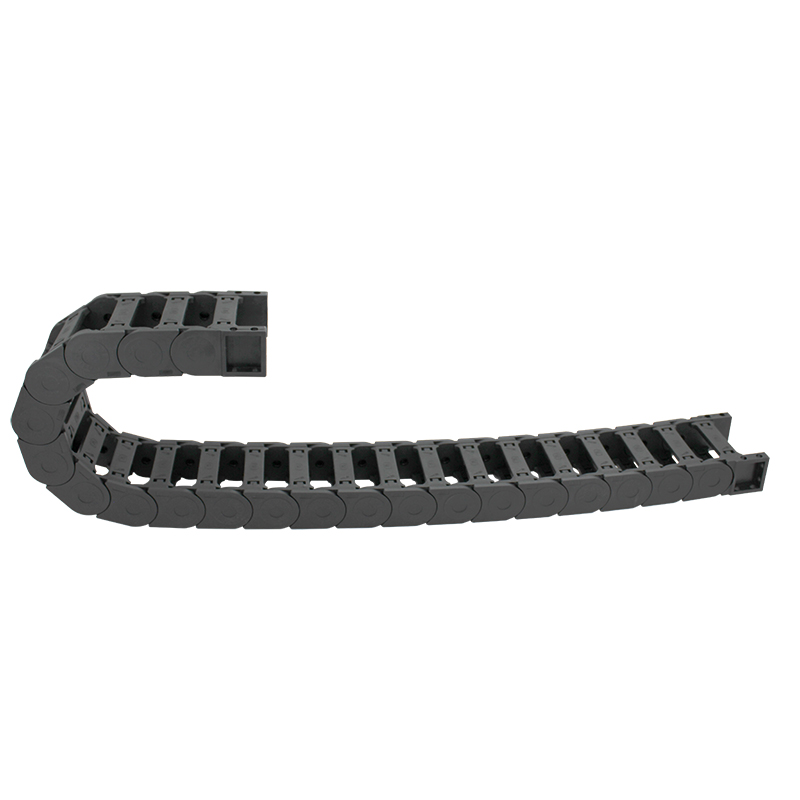

30 * 75 mm MTK alahaka ʻano nylon cnc kaulahao kaula

30*75 mm MTK bridge type nylon cnc cable chain

ʻO ka wehewehe pōkole:

ʻO ke ʻano MTK o ke kaulahao kaula me ka polū a i ʻole nā pine kala ʻē aʻe ma ka ʻaoʻao. Paʻa ka sturecture. ʻO kēia ke ʻano alahaka o ke kaulahao kaula. Hiki ke hoʻohana ʻia e like me ke kaulahao kaula CNC.

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66

2. Nui: Nui i loko: Kiʻekiʻe * ākea, 30 * 75 mm

3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.

4, ʻO ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.

5, Hana a mālama: maʻalahi. Hoʻomau mākou i ka hoʻololi a me ka hoʻomaikaʻi ʻana i kā mākou mau mold e like me ka manaʻo o kā mākou mea kūʻai ma hope o ka hoʻohana ʻana. A e nānā mau i ka hana.

E HOAKAKA ANO PDF Download

Nā kikoʻī

Nā huaʻōlelo

Structure feature

The MTK type of cable chain is with blue or other colored pins on the side. The sturecture is stable. This is bridge type of cable chain. It can be used as the CNC cable chain.

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66

2. Size: Inner size: Height*width, 30*75 mm

3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.

4, ʻO ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.

inoa mea kūʻai	kaulahao uwea nylon i hooikaikaia
Mea waiwai	PA6, PA66
kalakala	ʻeleʻele
Kūlana	ISO MINIMUM A HIKI ANSI
Hana wela	-40-130 ℃
Manaʻo ʻia ka hakahaka	10%
Nā hiʻohiʻona	hiki ke hoʻohana ʻia, elastic, pale ahi, lubricating ponoʻī.
ʻaoʻao hāmama	ʻaoʻao ʻelua.

MTK 30*75 ana

Dimension 1
Dimension 2
Dimension 3
Dimension 4

Nā hale hana

bracket drawing
drawing45x120
安捷新册子(封二-37)

Anana moʻo

ANO	Ana o loko Kiʻekiʻe*ākea	Nā ana o waho Kiʻekiʻe*ākea	Radius	Pitch	Pitch/mika	Kaumaha Kg/m
MTk20	20*30	35*47	R55	46.4	22	836.00
	20*38	35*55				908.40
	20*38F	35*55				902.30
	20*50	35*67				970.80
	20*60F	35*74				1218.00
	20*70	35*87				1057.20
	20*75	35*92				1100.40
	20*75F	35*92				1340.40
	20*100	35*117				1225.20
MTk25	25*30	40*48	R55 R75 R100 R125 R150	45.60	22	945.62
	25*38	40*56				1057.80
	25*38F	40*56				1182.60
	25*50	40*68				1120.20
	25*60F	40*75				1367.40
	25*70	40*88				1206.60
	25*75	40*93				1249.80
	25*75F	40*93				1489.80
	25*100	40*118				1374.60
MTK30	30*30	45*51	R55 R85 R100 R125 R150	45.6	22	1186.6
	30*38	45*59				1258.6
	30*38F	45*59				1383.4
	30*50	45*71				1321
	30*60F	45*78				1568.2
	30*70	45*91				1407.4
	30*75	45*96				1450.6
	30*75F	45*96				1690.6
	30*100	45*121				1444.6
MTK35	35*50	56*76	R85 R100 R125 R150 R200	64.23	16	2264.2
	35*57F	56*83				2518
	35*75	56*101				2411.8
	35*75F	56*101				2750.2
	35*100	56*126				2548.6
	35*100F	56*126				3065.2
	35*125	56*151				2663.8
	35*125F	56*151				3248.8
	35*150	56*176				2793.4
	35*175	56*201				2955.4
	35*200	56*226				3056.2
MTK45
	45*60	69*90	R100 R125 R150 R175 R200	75.5	13	2370.8
	45*75	69*105				2826.8
	45*75F	69*105				3089.8
	45*100	69*130				3042.8
	45*100F	69*130				3603.8
	45*120	69*155				3174.8
	45*125F	69*155				3828.8
	45*150	69*180				2915.2
	45*175	69*205				3441.8
	45*175 puni R52	69*205				3411.4
	45*175 puni R45	69*205				3291.8
	45*200	69*230				3660.8
