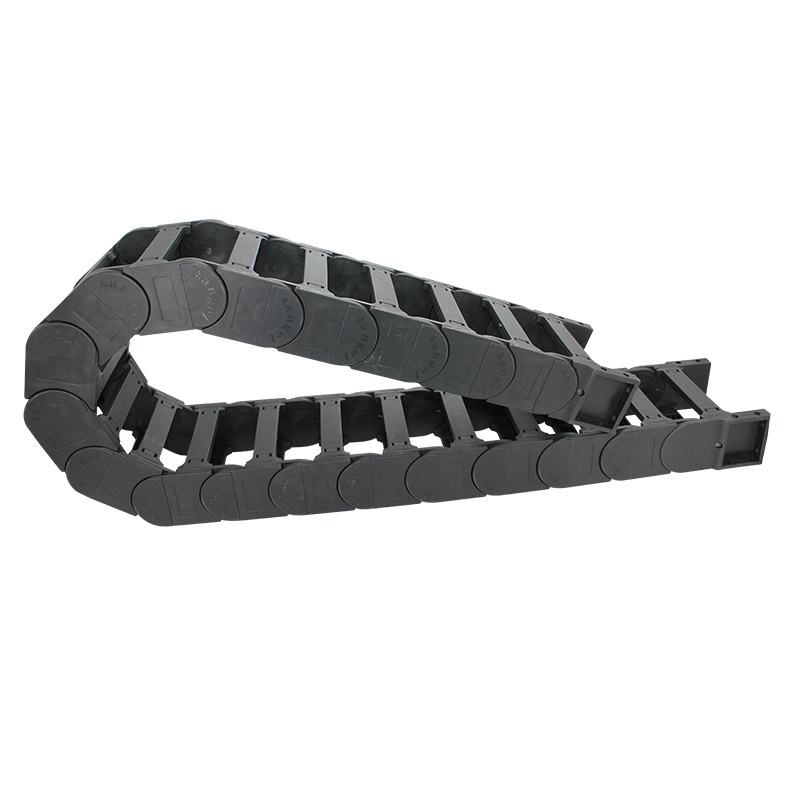

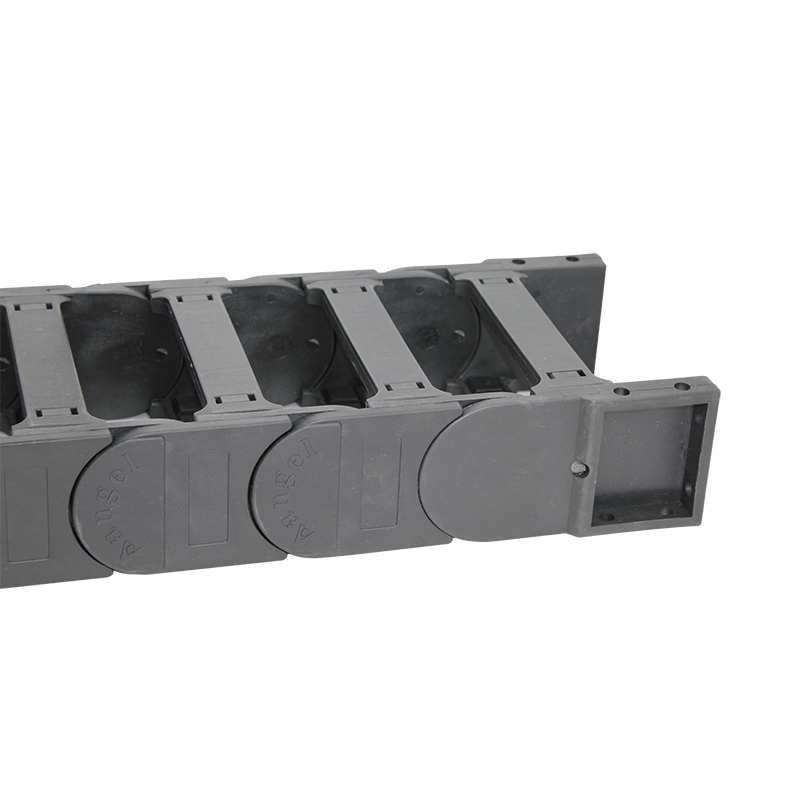

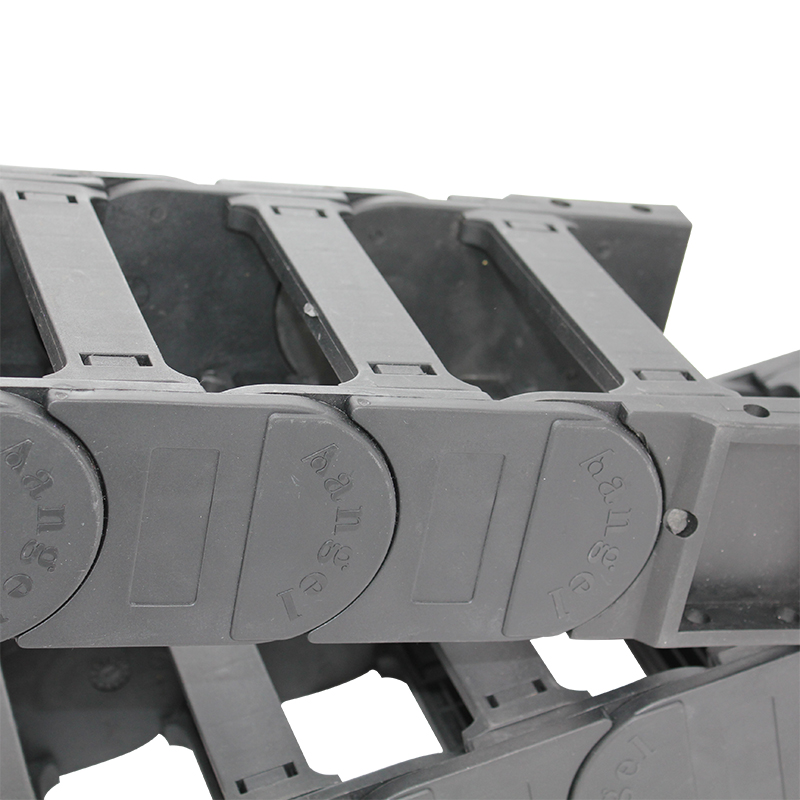

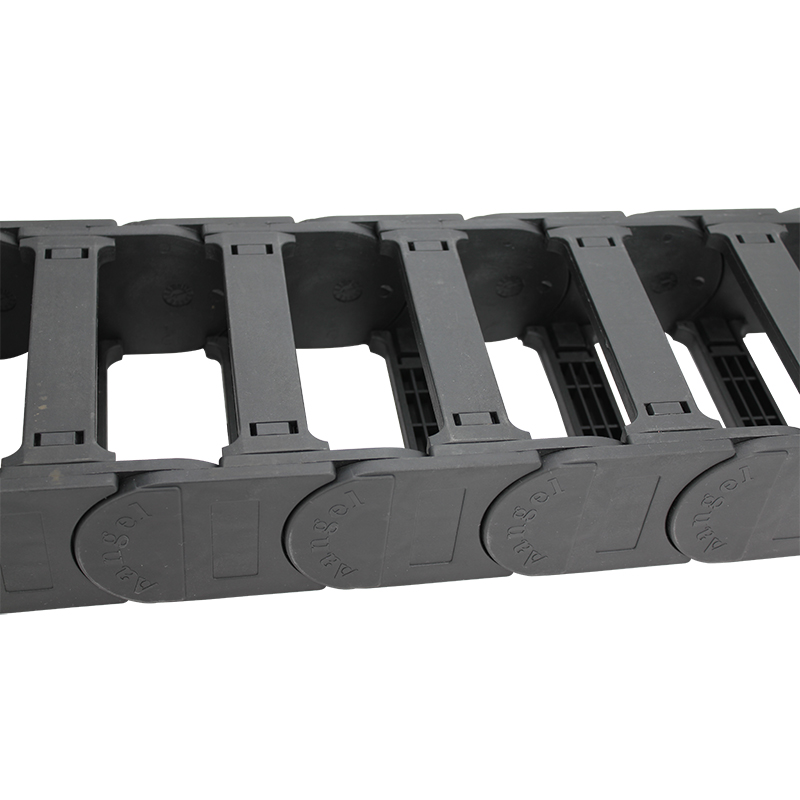

60*150 mm MT open type nylon flexible both side openable cable chain
1. Material: Reinforced Nylon PA6, PA66
2. Size: Inner size: Height*width, 60*150 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.
4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.
| Product Name | Reinforced nylon cable chain |
| Material | PA6, PA66 |
| Color | Black |
| Standard | DIN GB ISO JIS BA ANSI |
| Working temperature | -40-130 ℃ |
| Recommended gap | 10% |
| Features | wearable, elastic, fire proof, self-lubricating. |
| Open side | Both side. |
MT 60*150 measurement
Structures
Series Dimension
| TYPE | Inner dimensions Height*Width | Outter dimensions Height*Width | Radius | Pitch | Pitch/meter | Weight Kg/m |
| MT5-12 | 5*5 | 8*9 | R10, R15 | 10 | 100 | 0.04 |
| 7*7 | 10*13 | R15, R28 | 17.5 | 57 | 0.07 | |
| 10*10 | 14*17 | R28 | 20 | 50 | 0.13 | |
| 10*15 | 14*22 | R25 | 20 | 50 | 0.16 | |
| 11*20 | 15*28 | R28 | 20 | 50 | 0.17 | |
| 10*40 | 13*48 | R50 | 13.4 | 75 | 0.18 | |
| MT15 | 15*20 inside opening | 20*29 | R38 | 20 | 50 | 0.303 |
| 15*30 inside opening | 20*39 | R32 | 0.33 | |||
| 15*50 | 20*69 | R75 | 0.427 | |||
| MT18 | 18*25 inside opening | 23*36 | R47 | 33.5 | 30 | 0.4 |
| 18*37 inside opening | 23*48 | R45 | 33.8 | 30 | 0.435 | |
| 18*50 inside opening | 23*62 | R42 | 30.5 | 33 | 0.55 | |
| 18*25 outside opening | 23*37 | R28 R38 R48 | 31 | 33 | 0.332 | |
| 18*37 outside opening | 23*48 | R28 R38 R48 | 31 | 33 | 0.373 | |
| MT30 | 30*38 | 41*61 | R55 | 44.6 | 23 | 1.123 |
| 30*51 | 41*73 | 1.094 | ||||
| 30*77 | 41*100 | 1.435 | ||||
| MT35 | 33*52 | 53*78 | R145 | 58 | 17 | 1.722 |
| 33*75 | 53*91 | 1.545 | ||||
| 33*100 | 53*126 | 2.011 | ||||
| 33*175 | 53*201 | 2.562 | ||||
| MT45 | 45*50 | 63*80 | R125 | 71.5 | 14 | 2.049 |
| 45*75 | 63*105 | 2.729 | ||||
| 45*100 | 63*130 | 2.924 | ||||
| 45*125 | 63*155 | 3.074 | ||||
| 45*150 | 63*180 | 3.25 | ||||
| 45*175 | 63*205 | 3.346 | ||||
| 45*200 | 63*230 | 3.705 | ||||
| 45*250 | 63*280 | 3.913 | ||||
| MT52 | 52*60 | 75*84 | R150 | 82 | 12 | 2.132 |
| 52*75 | 75*99 | 2.558 | ||||
| 52*100 | 75*124 | 2.759 | ||||
| 52*100F | 75*124 | 6.014 | ||||
| 52*120 | 75*144 | 2.882 | ||||
| 52*125F | 75*149 | 3.344 | ||||
| 52*150 | 75*174 | 2.838 | ||||
| 52*150F | 75*174 | 3.616 | ||||
| 52*175 | 75*199 | 3.132 | ||||
| 52*175 round frame R52 | 75*199 | 3.12 | ||||
| 52*175 round frame R45 | 75*199 | 2.992 | ||||
| 52*200 | 75*224 | 3.505 | ||||
| 52*200F | 75*224 | 4.741 | ||||
| MT60 | 59*75 | 60*100 | R150 | 91 | 11 | 3.932 |
| 59*100 | 85*132 | 4.054 | ||||
| 59*125 | 85*157 | 4.239 | ||||
| 59*150 | 85*182 | 3.109 | ||||
| 59*175 | 85*207 | 4.647 | ||||
| 59*200 | 85*232 | 4.923 | ||||
| 59*250 | 85*282 | 5.326 | ||||
| 59*300 | 85*332 | 5.609 |
MT disassembling
HALF ENCLOSED TYPE INSIDE OPEN
BRIDGE TYPE BOTH SIDE OPEN
BRIDGE TYPE CAN’T OPEN
Production flow
How to identify good products
