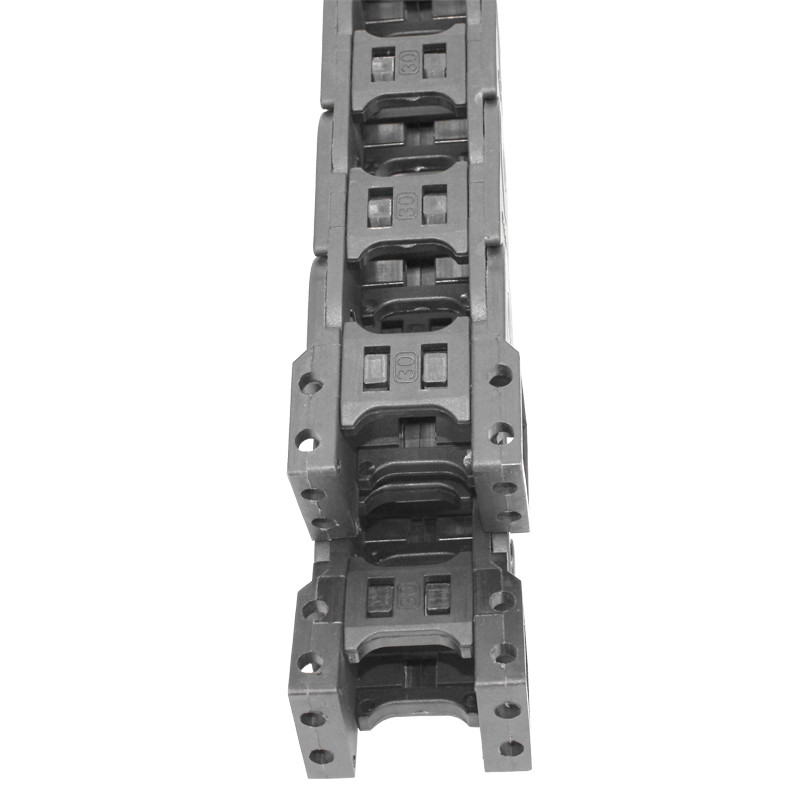

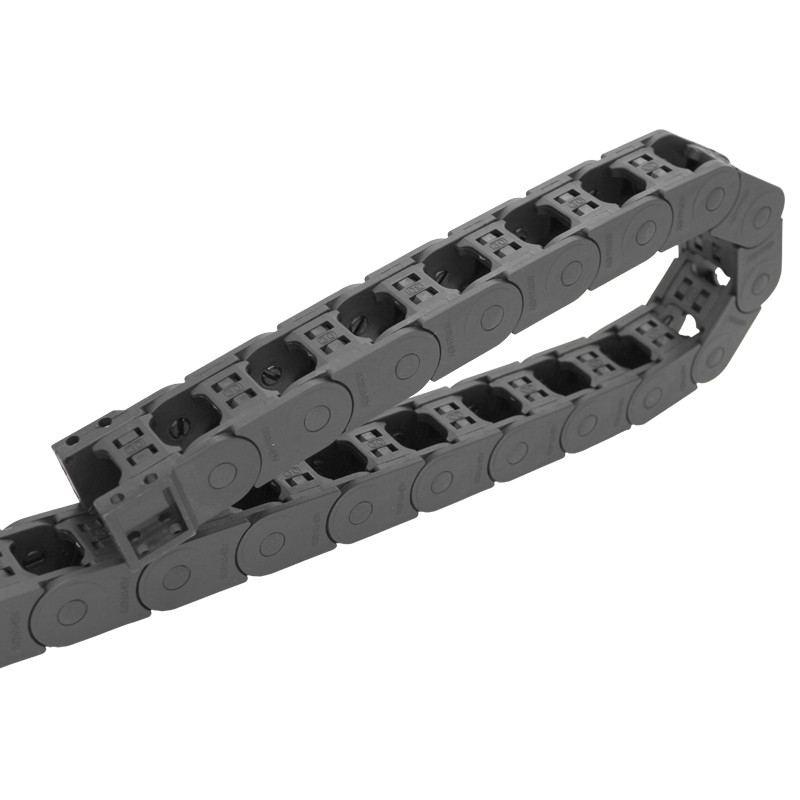

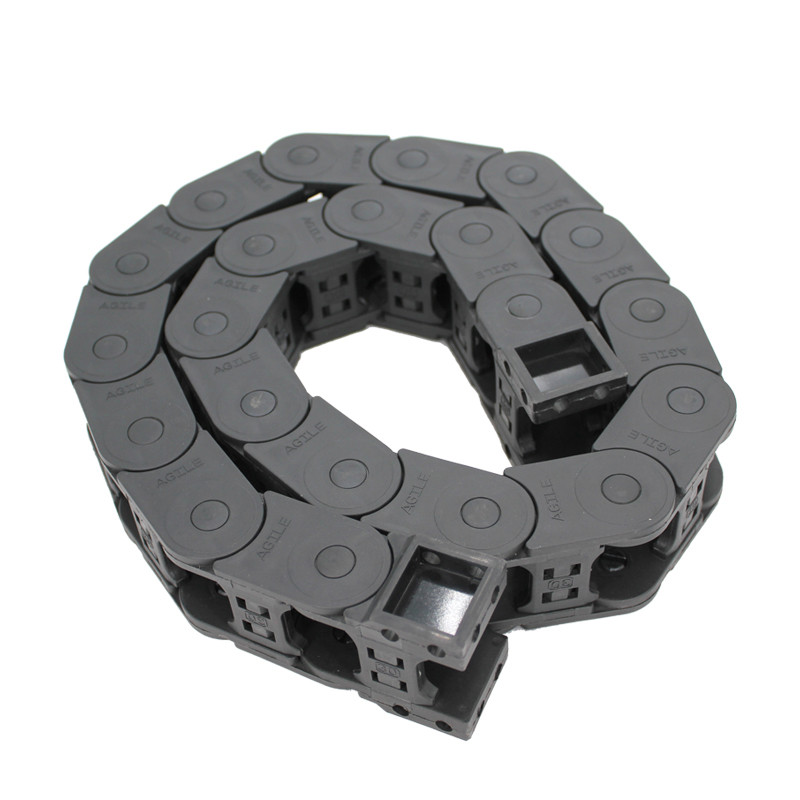

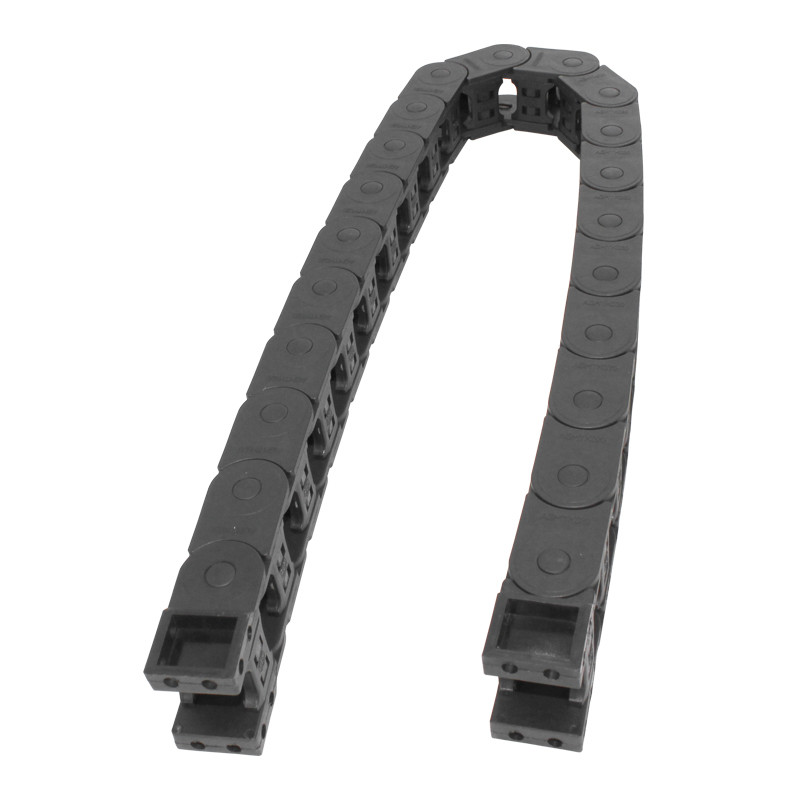

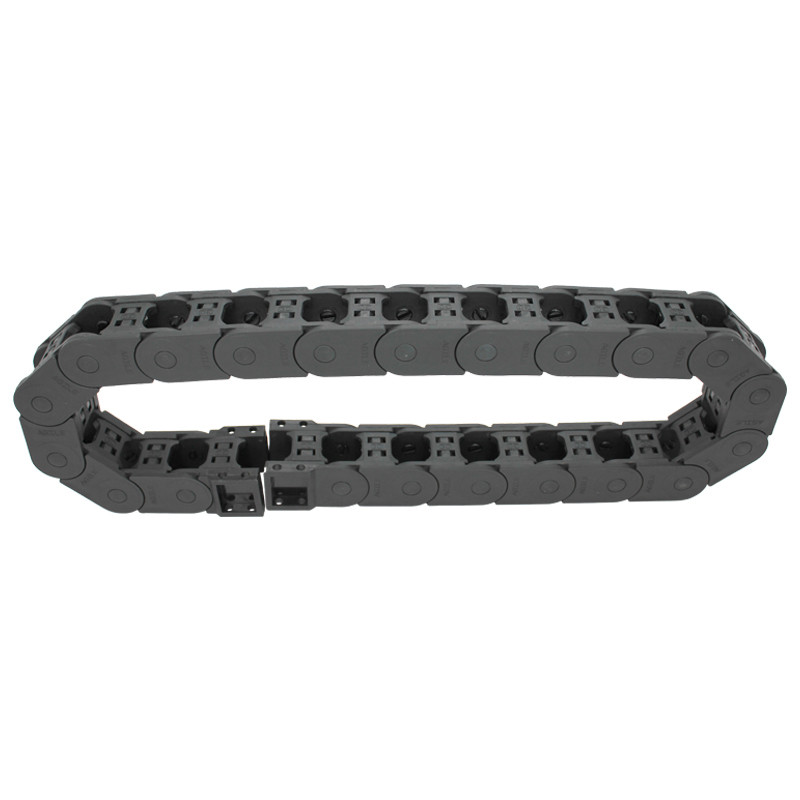

20*30 MTK small sized open type reinforced nylon cable chain
Product Video
1. Material: Reinforced Nylon PA6, PA66
2. Size: Inner size: Height*width, 20*30 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements.
4, The raw material: Original new nylon raw material. We don’t use recycling materials, which is cheap but week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds’ structures according to the feedback of our customers after usage. And always paying much attention to function.
Product Name | Reinforced nylon cable chain |
Material | PA6, PA66 |
Color | Black |
Standard | DIN GB ISO JIS BA ANSI |
Working temperature | -40-130 ℃ |
Recommended gap | 10% |
Features | wearable, elastic, fire proof, self-lubricating. |
Open side | Both side. |
MTK 20*30 measurement
Structures
Series Dimension
TYPE | Inner dimensions Height*Width | Outter dimensions Height*Width | Radius | Pitch | Pitch/meter | Weight Kg/m |
MTk20 | 20*30 | 35*47 | R55 | 46.4 | 22 | 836.00 |
20*38 | 35*55 | 908.40 | ||||
20*38F | 35*55 | 902.30 | ||||
20*50 | 35*67 | 970.80 | ||||
20*60F | 35*74 | 1218.00 | ||||
20*70 | 35*87 | 1057.20 | ||||
20*75 | 35*92 | 1100.40 | ||||
20*75F | 35*92 | 1340.40 | ||||
20*100 | 35*117 | 1225.20 | ||||
MTk25 | 25*30 | 40*48 | R55 R75 R100 R125 R150 |
45.60 | 22 | 945.62 |
25*38 | 40*56 | 1057.80 | ||||
25*38F | 40*56 | 1182.60 | ||||
25*50 | 40*68 | 1120.20 | ||||
25*60F | 40*75 | 1367.40 | ||||
25*70 | 40*88 | 1206.60 | ||||
25*75 | 40*93 | 1249.80 | ||||
25*75F | 40*93 | 1489.80 | ||||
25*100 | 40*118 | 1374.60 | ||||
MTK30 | 30*30 | 45*51 | R55 R85 R100 R125 R150 |
45.6 | 22 | 1186.6 |
30*38 | 45*59 | 1258.6 | ||||
30*38F | 45*59 | 1383.4 | ||||
30*50 | 45*71 | 1321 | ||||
30*60F | 45*78 | 1568.2 | ||||
30*70 | 45*91 | 1407.4 | ||||
30*75 | 45*96 | 1450.6 | ||||
30*75F | 45*96 | 1690.6 | ||||
30*100 | 45*121 | 1444.6 | ||||
MTK35 | 35*50 | 56*76 | R85 R100 R125 R150 R200 |
64.23 | 16 | 2264.2 |
35*57F | 56*83 | 2518 | ||||
35*75 | 56*101 | 2411.8 | ||||
35*75F | 56*101 | 2750.2 | ||||
35*100 | 56*126 | 2548.6 | ||||
35*100F | 56*126 | 3065.2 | ||||
35*125 | 56*151 | 2663.8 | ||||
35*125F | 56*151 | 3248.8 | ||||
35*150 | 56*176 | 2793.4 | ||||
35*175 | 56*201 | 2955.4 | ||||
35*200 | 56*226 | 3056.2 | ||||
MTK45 | ||||||
45*60 | 69*90 | R100 R125 R150 R175 R200 |
75.5 | 13 | 2370.8 | |
45*75 | 69*105 | 2826.8 | ||||
45*75F | 69*105 | 3089.8 | ||||
45*100 | 69*130 | 3042.8 | ||||
45*100F | 69*130 | 3603.8 | ||||
45*120 | 69*155 | 3174.8 | ||||
45*125F | 69*155 | 3828.8 | ||||
45*150 | 69*180 | 2915.2 | ||||
45*175 | 69*205 | 3441.8 | ||||
45*175 round R52 | 69*205 | 3411.4 | ||||
45*175 round R45 | 69*205 | 3291.8 | ||||
45*200 | 69*230 | 3660.8 |
MTK disassembling
Production flow
How to identify good products
