Maximizing Efficiency with Automotive Wire Tubing: A Comprehensive Guide

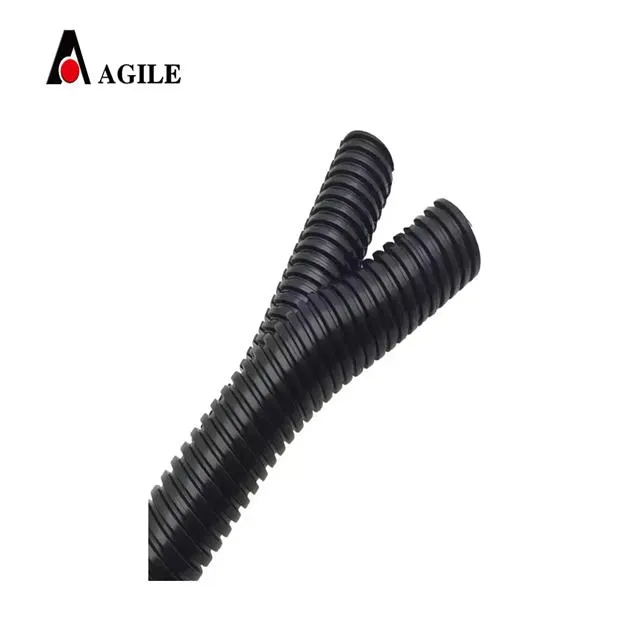

Automotive wire tubing, including flexible split pipe, colored split pipe, and nylon split wire pipe, is crucial for managing and protecting electrical wires in vehicles. Proper use of these components ensures efficient installation, enhances safety, and prolongs the lifespan of your wiring. Here’s a detailed guide on how to use these wire loom types correctly and efficiently.

Choosing the Right pipe for Your Automotive Wiring Needs

Selecting the appropriate automotive wire loom tubing is the first step in ensuring efficient and effective wire management. Consider the following factors:

Type of Loom:

• Flexible Split Loom: Ideal for applications where wires need to be added or removed frequently. Its split design allows for easy installation and modifications.
• Colored Split Loom: Useful for color-coding different wires or circuits, which aids in quick identification and troubleshooting. This is particularly beneficial in complex wiring systems.
•
• Nylon Split Wire Loom: Offers high durability and flexibility, making it suitable for automotive environments where resistance to abrasion and chemicals is crucial.

Size and Fit: Ensure that the pipe is appropriately sized for the wires it will protect. The pipe should be large enough to accommodate the wires but not so loose that it fails to offer adequate protection.

Correct Installation Techniques for Automotive Wire Tubing

Proper installation of automotive wire loom tubing is essential for maximizing its effectiveness and ensuring the safety and reliability of your wiring. Follow these steps for efficient installation:

Prepare the Wires: Before installing the loom, ensure that all wires are clean, properly insulated, and free of damage. If necessary, use wire strippers to remove insulation from the ends of the wires.

Select the Right Loom: Based on your needs and the environment, choose the appropriate type of loom. For instance, use nylon split wire loom for high-abrasion areas or colored split loom for enhanced wire organization.

Cut the Loom to Size: Measure and cut the loom to the required length, allowing a little extra to ensure a snug fit around the wires.

Install the Loom: Slide the wires into the flexible split loom or other types of loom. For nylon split wire loom, you may need to use a split loom tool or pliers to ensure a tight fit. Ensure that the wires are fully inserted and that the loom covers the entire length of the wire bundle.

Secure the Loom: Use cable ties, clamps, or clips to secure the loom in place. This prevents it from shifting or moving, which can lead to wear and tear on the wires.

Check for Proper Coverage: Ensure that the loom is evenly distributed along the wires and that there are no gaps or areas where the wires are exposed. This ensures complete protection and prevents damage.

Maintaining Efficiency and Safety with Automotive Wire Loom Tubing

Once installed, maintaining the efficiency and safety of your automotive wire loom tubing is key to long-term performance. Consider these maintenance tips:

Regular Inspections: Periodically check the loom and the wires for signs of wear, damage, or deterioration. Replace or repair any damaged sections promptly to prevent issues.

Avoid Over-bending: Ensure that the loom is not subjected to excessive bending or twisting, which can lead to damage. Maintain proper routing to minimize sharp bends and stress points.

Clean and Protect: Keep the loom clean and free from debris. If the loom is exposed to harsh chemicals or extreme conditions, consider using additional protective measures, such as protective sleeves or coatings.

Advantages of Using Different Types of Automotive Wire Loom Tubing

Understanding the advantages of each type of automotive wire loom tubing helps in selecting the best option for your specific needs:

Flexible Split Loom: Offers ease of installation and modification, making it ideal for dynamic environments where changes are frequent.

Colored Split Loom: Enhances organization and identification of wires, which is especially useful in complex wiring systems where quick troubleshooting is needed.

Nylon Split Wire Loom: Provides excellent durability and flexibility, making it suitable for demanding automotive environments where protection against abrasion and chemicals is essential.

Efficient Use of Automotive Wire Loom Tubing

Proper use of automotive wire loom tubing, including flexible split loom, colored split loom, and nylon split wire loom, is essential for efficient wire management and protection. By selecting the right type of loom, following correct installation techniques, and maintaining the system properly, you can ensure reliable and long-lasting performance. These best practices not only enhance safety but also contribute to the overall efficiency of your automotive wiring system.
