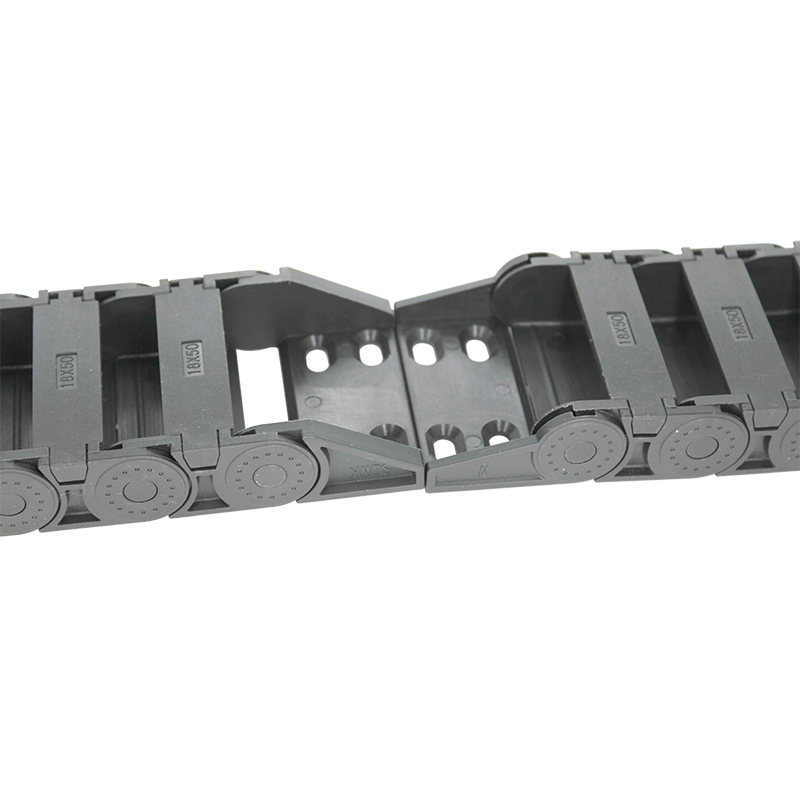

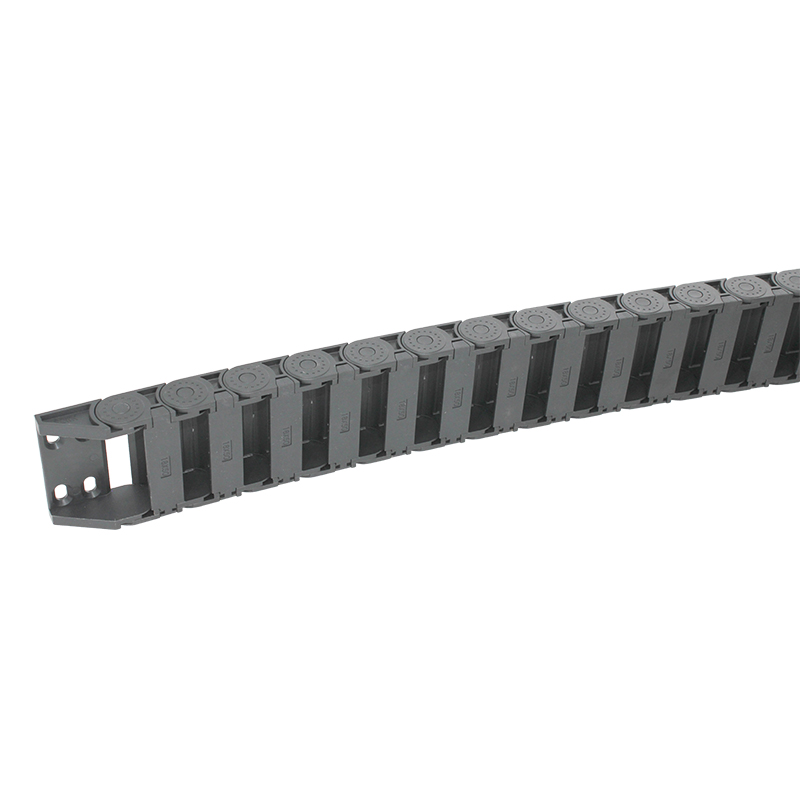

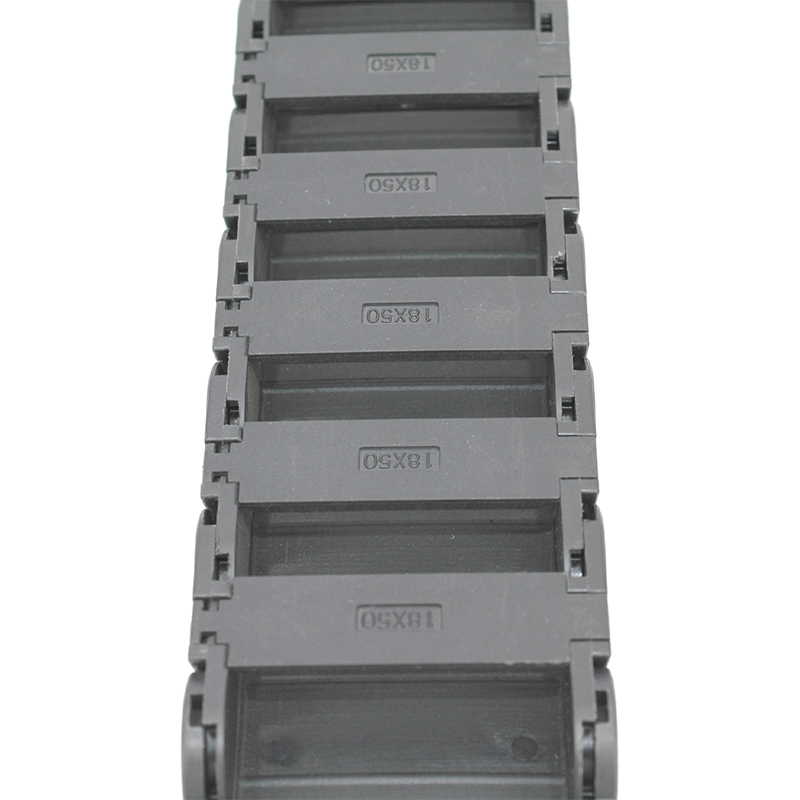

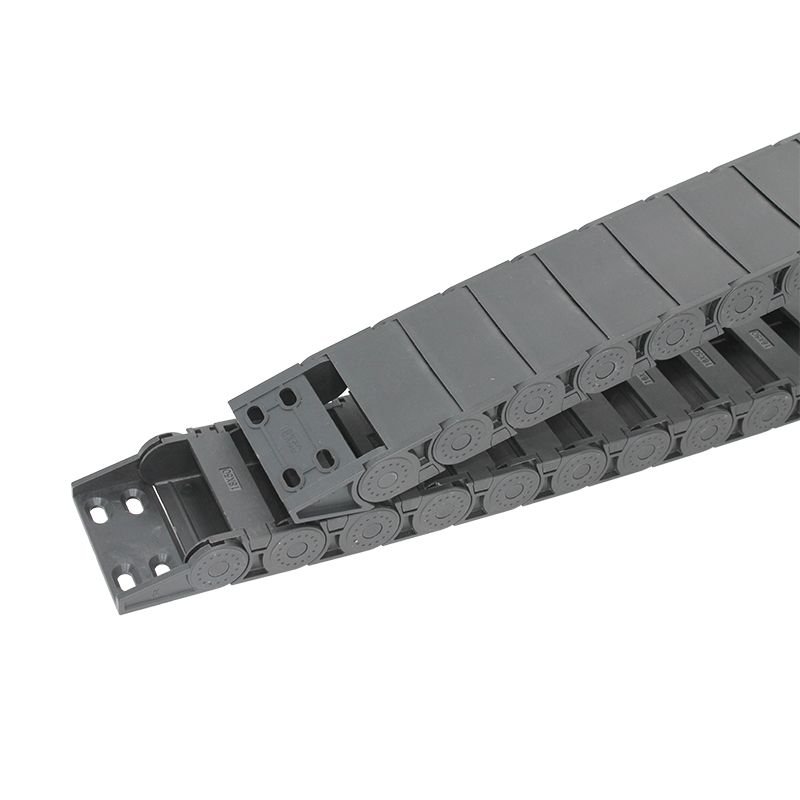

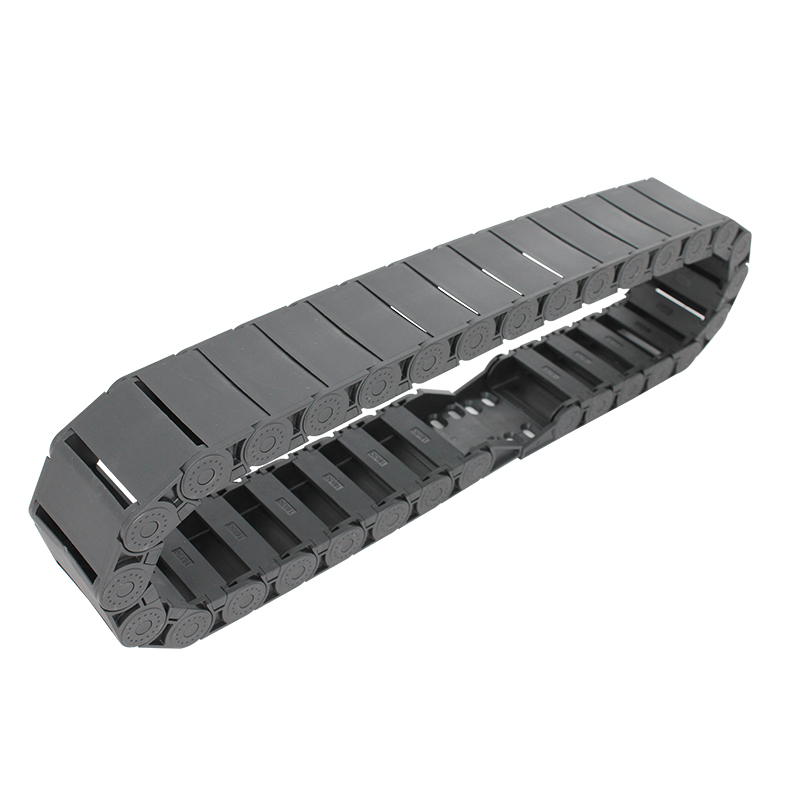

18*50 mm MT liʻiliʻi liʻiliʻi semi hoʻopaʻa kaula kaula no ka mea paʻi

18*50 mm MT small size semi enclosed cable chain for printer

ʻO ka wehewehe pōkole:

ʻO ke ʻano MT o ke kaulahao kaula ka hapa nui o ka uhi ʻana i nā liʻiliʻi liʻiliʻi, hoʻohana nui ʻia kēia mau ʻano kaulahao i nā mea paʻi.

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66

2. Nui: Nui i loko: Kiʻekiʻe * ākea, 18 * 50 mm

3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.

4, ʻO ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.

5, Hana a mālama: maʻalahi. Hoʻomau mākou i ka hoʻololi a me ka hoʻomaikaʻi ʻana i kā mākou mau mold e like me ka manaʻo o kā mākou mea kūʻai ma hope o ka hoʻohana ʻana. A e nānā mau i ka hana.

E HOAKAKA ANO PDF Download

Nā kikoʻī

Nā huaʻōlelo

Structure feateure

MT type of cable chain mostly cover the small sizes, these kind of cable chains are widely used in printers.

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66

2. Nui: Nui i loko: Kiʻekiʻe * ākea, 18 * 50 mm

3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.

4, ʻO ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.

inoa mea kūʻai	kaulahao uwea nylon i hooikaikaia
Mea waiwai	PA6, PA66
kalakala	ʻeleʻele
Kūlana	ISO MINIMUM A HIKI ANSI
Hana wela	-40-130 ℃
Manaʻo ʻia ka hakahaka	10%
Nā hiʻohiʻona	hiki ke hoʻohana ʻia, elastic, pale ahi, lubricating ponoʻī.
ʻaoʻao hāmama	ʻaoʻao ʻelua.

MT 18*50 ana

Dimension 1
Dimension 3
Dimension 2
Dimension 4

Nā hale hana

MT18x25接头-01-01
MT18x25 size-01
load chart-01-01-01

Anana moʻo

ANO	Ana o loko Kiʻekiʻe*ākea	Nā ana o waho Kiʻekiʻe*ākea	Radius	Pitch	Pitch/mika	Kaumaha Kg/m
MT5-12	5*5	8*9	R10, R15	10	100	0.04
	7*7	10*13	R15, R28	17.5	57	0.07
	10*10	14*17	R28	20	50	0.13
	10*15	14*22	R25	20	50	0.16
	11*20	15*28	R28	20	50	0.17
	10*40	13*48	R50	13.4	75	0.18
MT15	15 * 20 puka i loko	20*29	R38	20	50	0.303
	15 * 30 puka i loko	20*39	R32			0.33
	15*50	20*69	R75			0.427
MT18	18*25 puka i loko	23*36	R47	33.5	30	0.4
	18*37 puka i loko	23*48	R45	33.8	30	0.435
	18*50 i loko o ka wehe	23*62	R42	30.5	33	0.55
	18*25 puka waho	23*37	R28 R38 R48	31	33	0.332
	18*37 puka waho	23*48	R28 R38 R48	31	33	0.373
MT30	30*38	41*61	R55	44.6	23	1.123
	30*51	41*73				1.094
	30*77	41*100				1.435
MT35	33*52	53*78	R145	58	17	1.722
	33*75	53*91				1.545
	33*100	53*126				2.011
	33*175	53*201				2.562
MT45	45*50	63*80	R125	71.5	14	2.049
	45*75	63*105				2.729
	45*100	63*130				2.924
	45*125	63*155				3.074
	45*150	63*180				3.25
	45*175	63*205				3.346
	45*200	63*230				3.705
	45*250	63*280				3.913
MT52	52*60	75*84	R150	82	12	2.132
	52*75	75*99				2.558
	52*100	75*124				2.759
	52*100F	75*124				6.014
	52*120	75*144				2.882
	52*125F	75*149				3.344
	52*150	75*174				2.838
	52*150F	75*174				3.616
	52*175	75*199				3.132
	52*175 pahu poepoe R52	75*199				3.12
	52*175 pahu poepoe R45	75*199				2.992
	52*200	75*224				3.505
	52*200F	75*224				4.741
MT60	59*75	60*100	R150	91	11	3.932
	59*100	85*132				4.054
	59*125	85*157				4.239
	59*150	85*182				3.109
	59*175	85*207				4.647
	59*200	85*232				4.923
	59*250	85*282				5.326
	59*300	85*332				5.609
