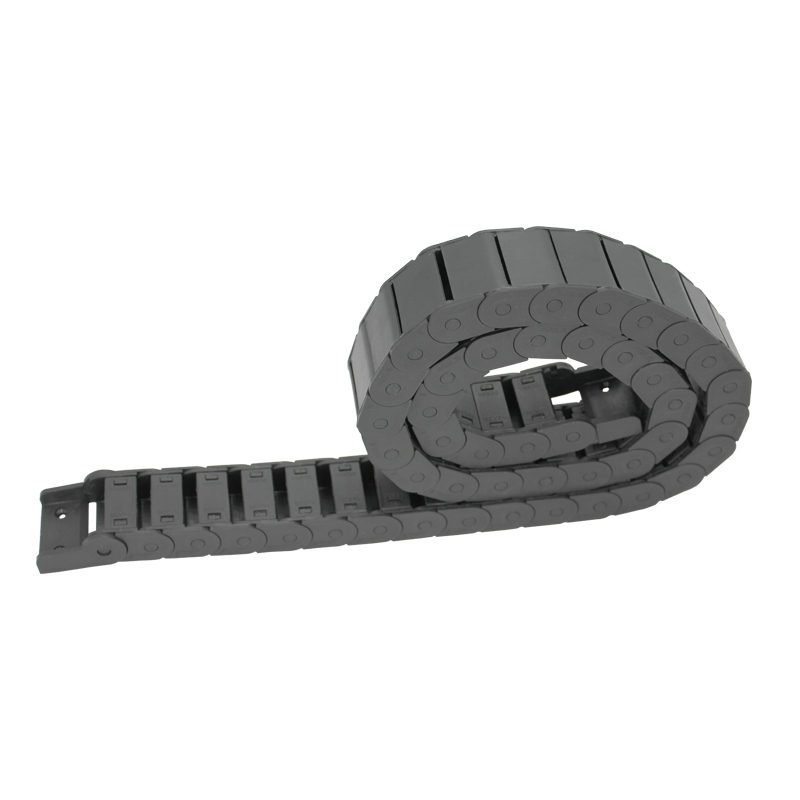

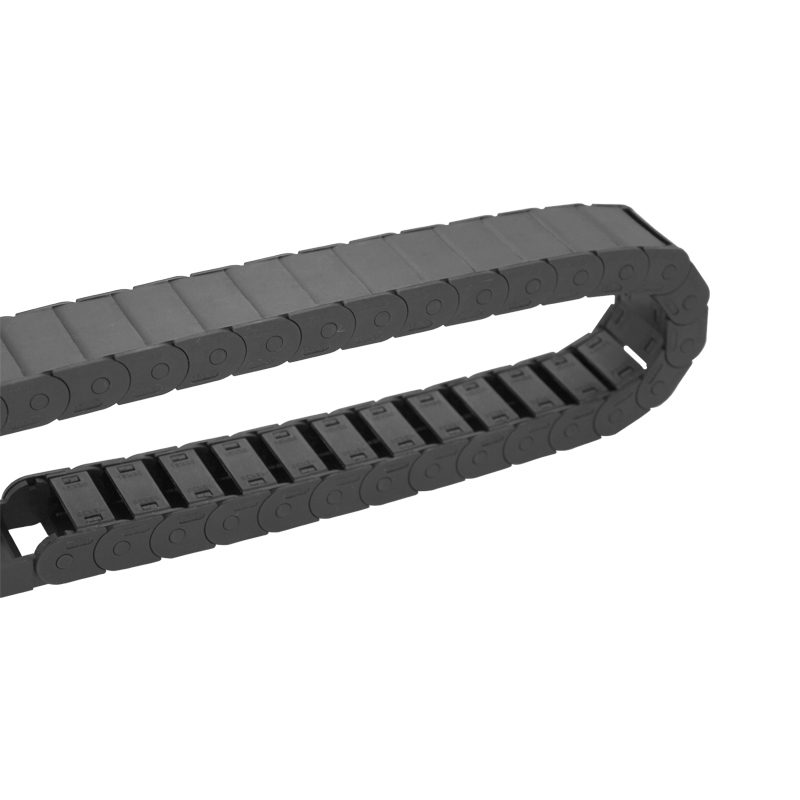

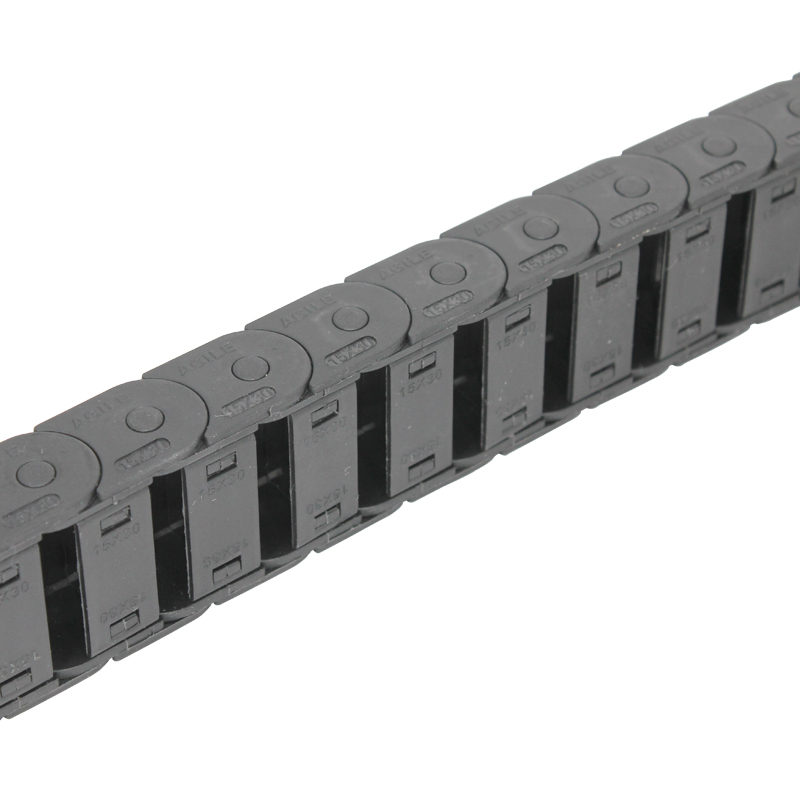

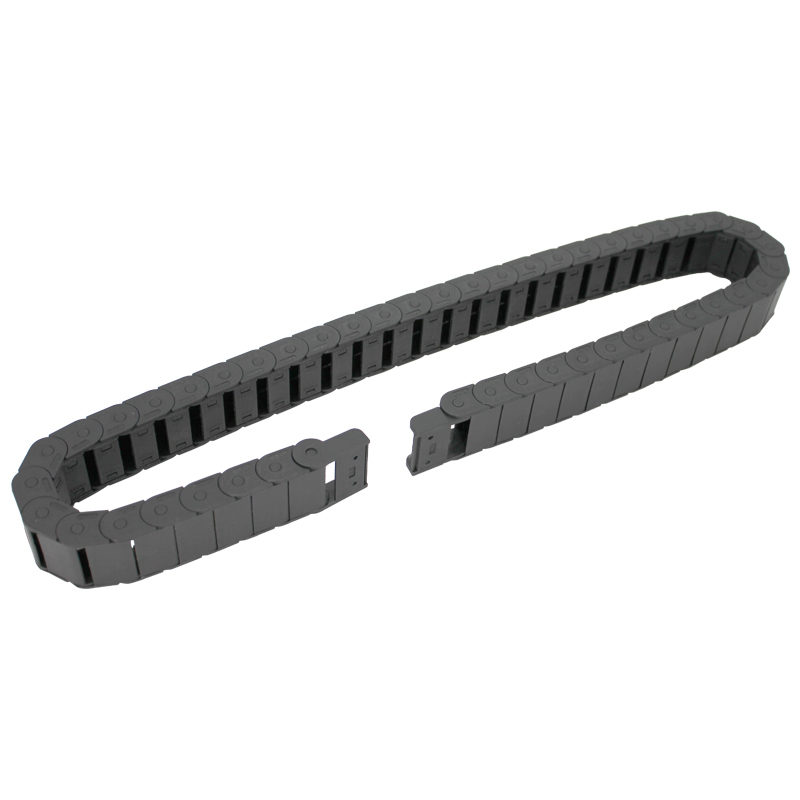

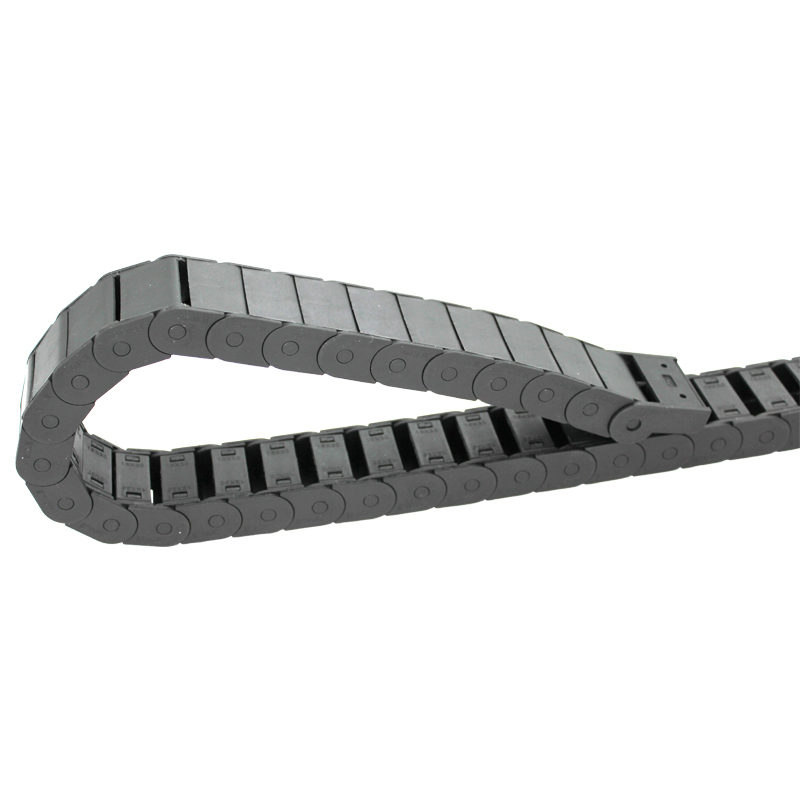

15*30 MT moʻo alahaka ʻano plastik ikaika kiʻekiʻe naylon kaulahao no ka mea paʻi

15*30 MT series bridge type plastic high strength nylon cable chain for printer

ʻO ka wehewehe pōkole:

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66

2. Nui: Nui i loko: Kiʻekiʻe * ākea, 15 * 30 mm

3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.

4. Ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.

5. Hana a mālama: maʻalahi. Hoʻomau mākou i ka hoʻololi a me ka hoʻomaikaʻi ʻana i kā mākou mau mold e like me ka manaʻo o kā mākou mea kūʻai ma hope o ka hoʻohana ʻana. A e nānā mau i ka hana.

E HOAKAKA ANO PDF Download

Nā kikoʻī

Nā huaʻōlelo

Structure feateure

1. Mea Hana: Hoʻoikaika ʻia Nylon PA6, PA66
2. Nui: Nui i loko: Kiʻekiʻe * ākea, 15 * 30 mm
3. Nui nā mold no nā ʻano nui e koho ai. Also ʻano ʻokoʻa, nā hiʻohiʻona. Hiki iā mākou ke hana i ka poni hou no nā koi kūikawā.
4. Ka mea maka: Original new new nylon raw material. ʻAʻole mākou hoʻohana i nā mea hana hou, he mea maʻalahi ia akā he hebedoma i ka hana kino.
5. Hana a mālama: maʻalahi. Hoʻomau mākou i ka hoʻololi a me ka hoʻomaikaʻi ʻana i kā mākou mau mold e like me ka manaʻo o kā mākou mea kūʻai ma hope o ka hoʻohana ʻana. A e nānā mau i ka hana.

inoa mea kūʻai	kaulahao uwea nylon i hooikaikaia
Mea waiwai	PA6, PA66
kalakala	ʻeleʻele
Kūlana	ISO MINIMUM A HIKI ANSI
Hana wela	-40-130 ℃
Manaʻo ʻia ka hakahaka	10%
Nā hiʻohiʻona	hiki ke hoʻohana ʻia, elastic, pale ahi, lubricating ponoʻī.
ʻaoʻao hāmama	ʻaoʻao i loko o ka piko.

MT 15*30 ana

Nā hale hana

Anana moʻo

ANO	Ana o loko Kiʻekiʻe*ākea	Nā ana o waho Kiʻekiʻe*ākea	Radius	Pitch	Pitch/mika	Kaumaha Kg/m
MT5-12	5*5	8*9	R10, R15	10	100	0.04
	7*7	10*13	R15, R28	17.5	57	0.07
	10*10	14*17	R28	20	50	0.13
	10*15	14*22	R25	20	50	0.16
	11*20	15*28	R28	20	50	0.17
	10*40	13*48	R50	13.4	75	0.18
MT15	15 * 20 puka i loko	20*29	R38	20	50	0.303
	15 * 30 puka i loko	20*39	R32			0.33
	15*50	20*69	R75			0.427
MT18	18*25 puka i loko	23*36	R47	33.5	30	0.4
	18*37 puka i loko	23*48	R45	33.8	30	0.435
	18*50 i loko o ka wehe	23*62	R42	30.5	33	0.55
	18*25 puka waho	23*37	R28 R38 R48	31	33	0.332
	18*37 puka waho	23*48	R28 R38 R48	31	33	0.373
MT30	30*38	41*61	R55	44.6	23	1.123
	30*51	41*73				1.094
	30*77	41*100				1.435
MT35	33*52	53*78	R145	58	17	1.722
	33*75	53*91				1.545
	33*100	53*126				2.011
	33*175	53*201				2.562
MT45	45*50	63*80	R125	71.5	14	2.049
	45*75	63*105				2.729
	45*100	63*130				2.924
	45*125	63*155				3.074
	45*150	63*180				3.25
	45*175	63*205				3.346
	45*200	63*230				3.705
	45*250	63*280				3.913
MT52	52*60	75*84	R150	82	12	2.132
	52*75	75*99				2.558
	52*100	75*124				2.759
	52*100F	75*124				6.014
	52*120	75*144				2.882
	52*125F	75*149				3.344
	52*150	75*174				2.838
	52*150F	75*174				3.616
	52*175	75*199				3.132
	52*175 pahu poepoe R52	75*199				3.12
	52*175 pahu poepoe R45	75*199				2.992
	52*200	75*224				3.505
	52*200F	75*224				4.741
MT60	59*75	60*100	R150	91	11	3.932
	59*100	85*132				4.054
	59*125	85*157				4.239
	59*150	85*182				3.109
	59*175	85*207				4.647
	59*200	85*232				4.923
	59*250	85*282				5.326
	59*300	85*332				5.609
