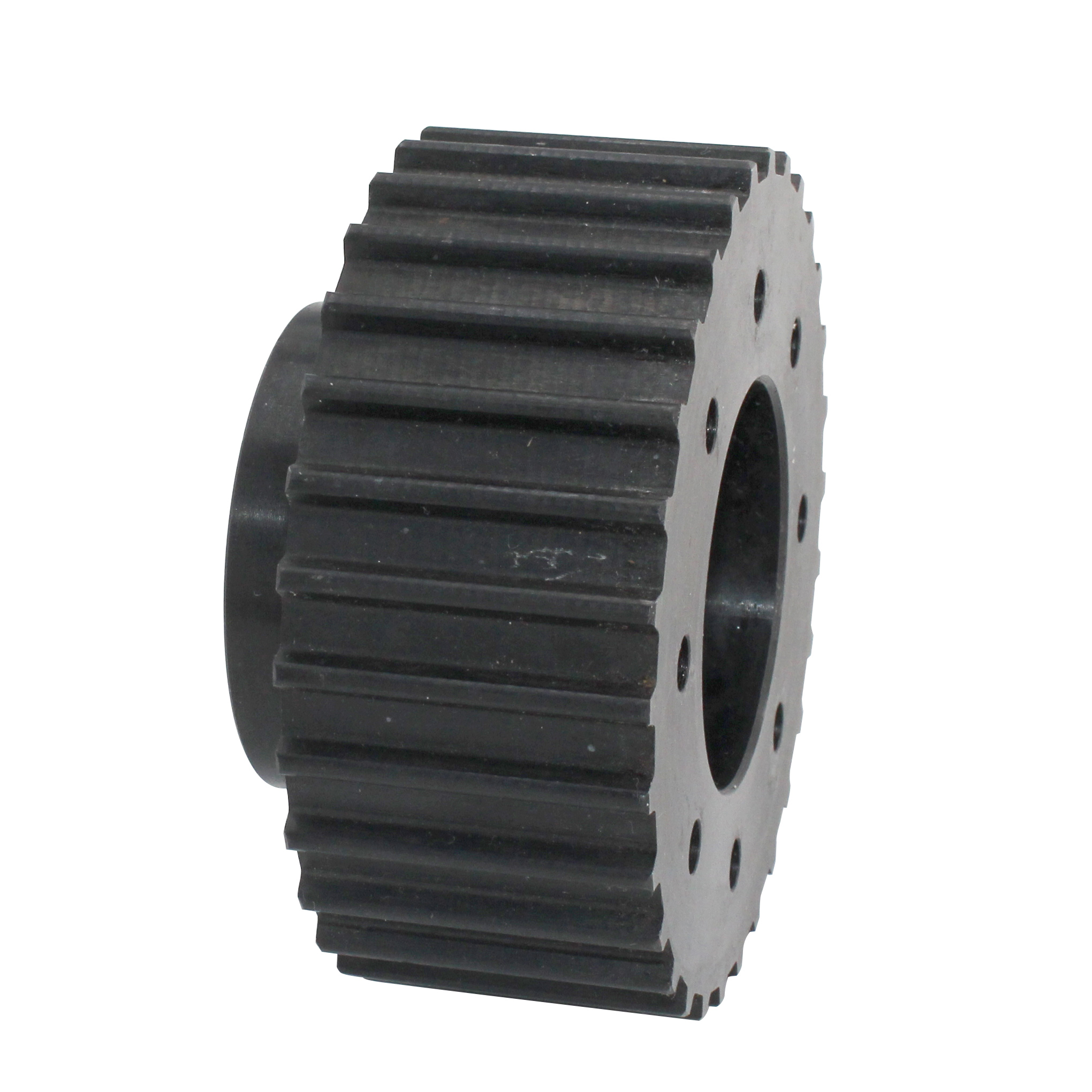

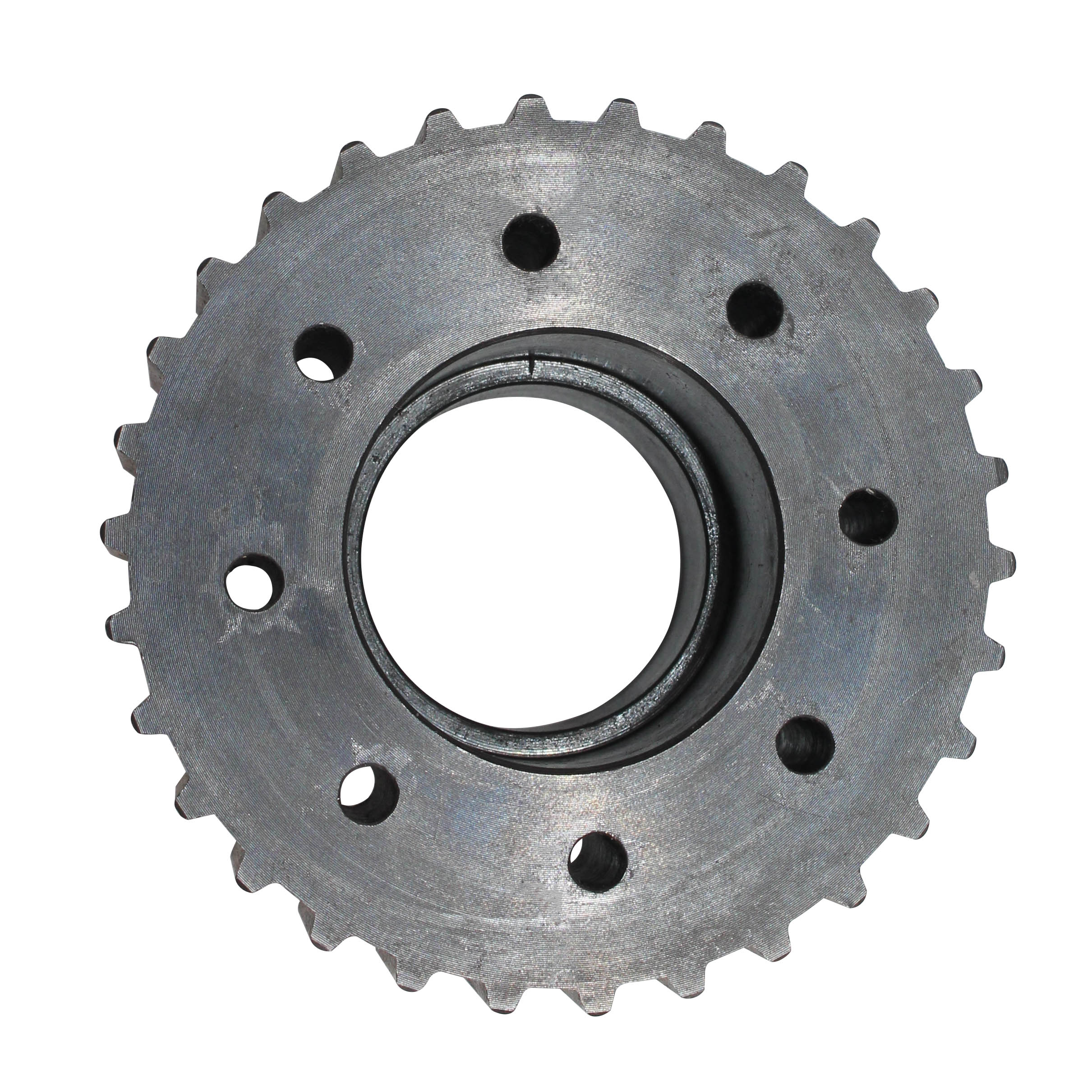

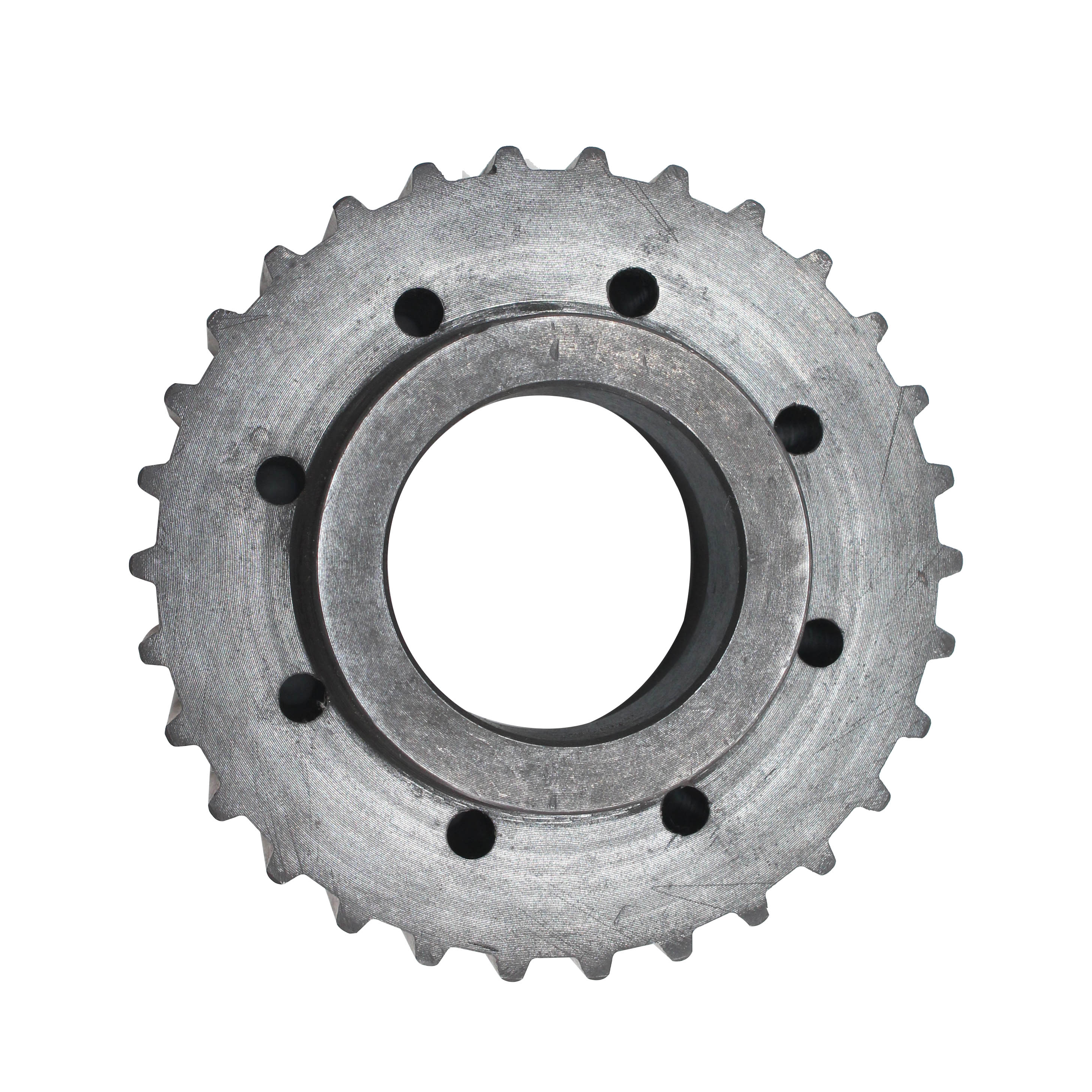

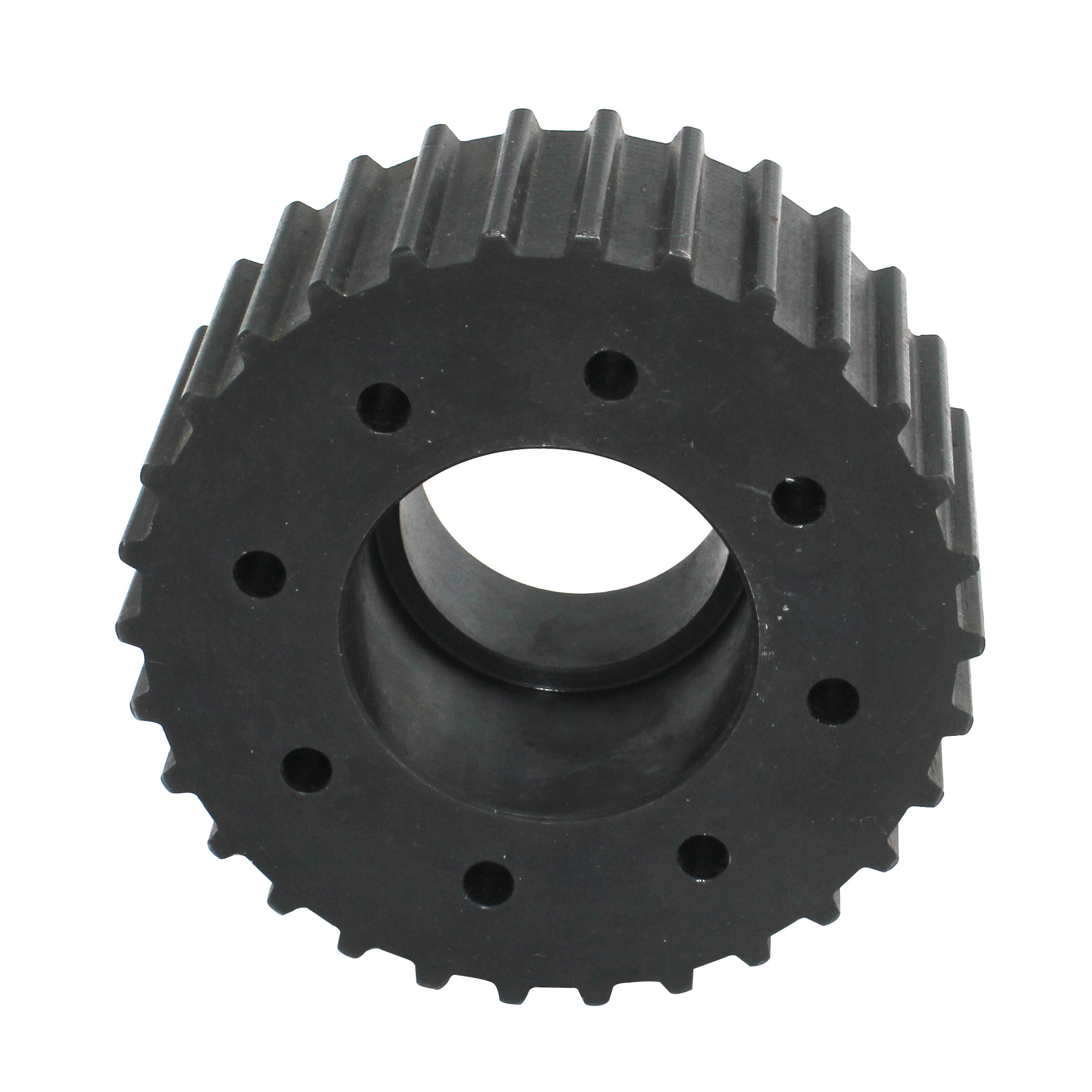

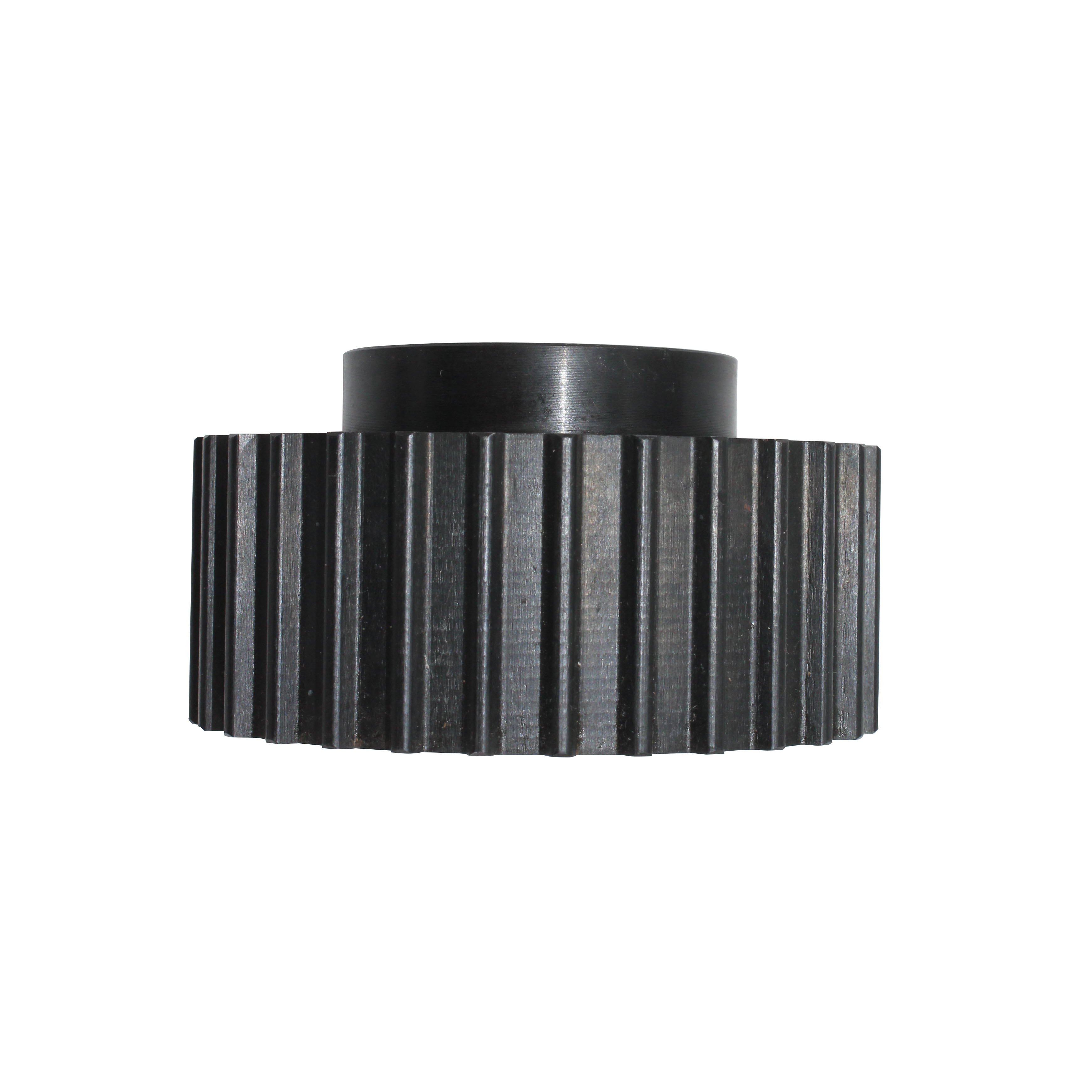

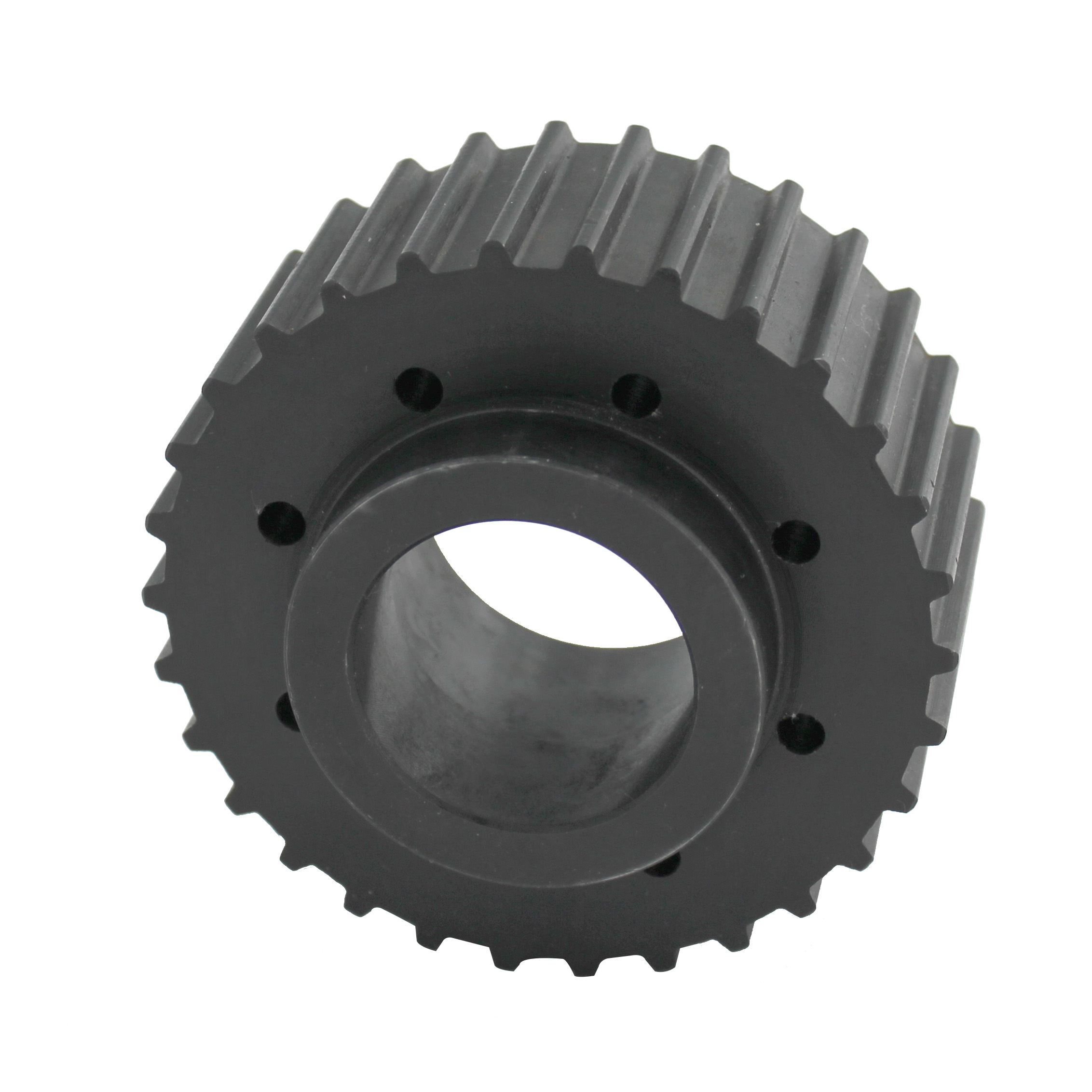

hoʻopilikino kalapona kila synchronous kāʻei huila pulley

customized carbon steel synchronous belt wheel pulley gear

ʻO ka wehewehe pōkole:

1, ʻO ka huila kāʻei a mākou e hana ai hiki ke hoʻohālikelike me ke kāʻei synchronous o nā ʻano like ʻole mai ka home a me waho.

2, E ʻoluʻolu e hāʻawi i ke kaha kiʻi no ka hana maʻamau. ʻAʻole pono e hoʻopau i ka nui a me ke ʻano o ka niho. Hiki iā mākou ke hāʻawi i ke kaha kiʻi e like me ke kumu hoʻohālike i koi ʻia, nā lua, ke ala kī, ka laulā etc.

3, ʻO ka ʻae ʻana o ke anawaena o waho, ka holo ʻana o ke alo, ka holo ʻana o ka radial e kūlike me ka koi i helu ʻia ma ka papa ma lalo.

4, ʻO ka mea o ka huila he kila kalapona. Loaʻa nā koi kūikawā e like me ke alumini alumini a i ʻole ke ʻano nylon. ʻO ke anawaena ma luna o 250 mm, e hoʻohana i ka hao pahu.

E HOAKAKA ANO PDF Download

Nā kikoʻī

Nā huaʻōlelo

Nā hale like ʻole

外型图

Hoʻomanawanui huila

ʻO ke kāʻei ʻana o ka huila kāʻei

Anawaena waho	ʻAe ʻia ka hoʻomanawanui
Anawaena waho	Ma waena o kēlā me kēia niho	90 degere arc tolerance
≤25.40	0.03	0.05
25.40~50.80	0.03	0.08
50.80~101.60	0.03	0.10
101.60~117.80	0.03	0.13
117.80~304.80	0.03	0.15
304.80~508.00	0.03	0.18
＞508.00	0.03	0.20

Huila kāʻei anawaena anawaena o waho		ʻO ke alo huila kāʻei holo i waho
Anawaena waho	Hoʻomanawanui	Anawaena waho	Hoʻomanawanui
≤25.40	+0.05	≤101.61	0.10
25.40~50.80	+0.08	101.61~254.00	ʻo waho.×0.001
50.80~101.60	+0.10	＞254.00	0.25+[(od-254)×0.005]
101.60~117.80	+0.13	ʻO ka hoʻomanawanui holo ʻana
117.80~304.80	+0.15	≤203.20	0.13
304.80~508.00	+0.18	＞203.20	0.13+[(od-203.2)×0.005]

Hoʻomanawanui niho

Huila kāʻei me ka nui o ka niho lihi pololei a me ka hoʻomanawanui

Code	b	hg	y+1.5°	rb	rt	2k
XL	0.84±0.05	0.69	20	0.35	0.13	0.508
XXL	1.14±0.05	0.84	25	0.35	0.30	0.508
XL	1.32±0.05	1.65	20	0.41	0.64	0.508
L	3.05±0.10	2.67	20	1.19	1.17	0.762
H	4.19±0.13	3.05	20	1.60	1.6	1.372
XH	7.90±0.15	7.14	20	1.98	2.39	2.794
XXH	12.17±0.18	10.31	20	3.96	3.18	3.048

HTD kāʻei huila nui a me ka hoʻomanawanui

Code	Pitch	Kiʻekiʻe niho hg	radius pōʻai lalo R	Laulā niho S	radius poai luna r	Angle
3M	3	1.28	0.91	1.90	0.3	≈14°
5M	5	2.16	1.56	3.25	0.48	≈14°
8M	8	3.54	2.57	5.35	0.8	≈14°
14M	14	6.20	4.65	9.80	1.4	≈14°

Huila kāʻei me ka nui o ka niho ʻano T a me ka hoʻomanawanui

Code	Kinohi				y Papa	rt	rb	2k
Code	SE br≤20 niho	N br≤20 niho	SE hg≤20 niho	N hg≤20 niho min	±1.5°	max	rb	2k
T2.5	1.75+0.05	1.83+0.05	0.75+0.05	1	25	0.2	0.3+0.05	0.6
T5	2.96+0.05	3.32+0.05	1.25+0.05	1.95	25	0.4	0.6+0.05	0.85
T10	6.02+0.10	6.57+0.10	2.6+0.10	3.4	25	0.6	0.8+0.10	1.85
T20	11.65+0.15	12.6+0.15	5.2+0.13	6	25	0.8	1.2+0.10	2.83

STPD/STS kāʻei huila nui a me ka hoʻomanawanui

Code	Pitch	Kiʻekiʻe niho hg	radius pōʻai lalo R	Ka laula niho S	2k
S2M	2	0.76	1.325	1.30	0.508
S3M	3	1.11	1.975	1.95	0.762
S4.5M	4.5	1.59	2.98	2.93	0.762
S5M	5	1.89	3.275	3.25	0.96
S8M	8	2.83	5.30	5.20	1.372
S14M	14	4.95	9.28	9.10	2.794
